3.4 Layout Requirements for Single-Row Aisle
Containment with a Column
This section describes the column position in the scenario with a column relative to the
adjustable skylight, sealing plates, and cable trays.

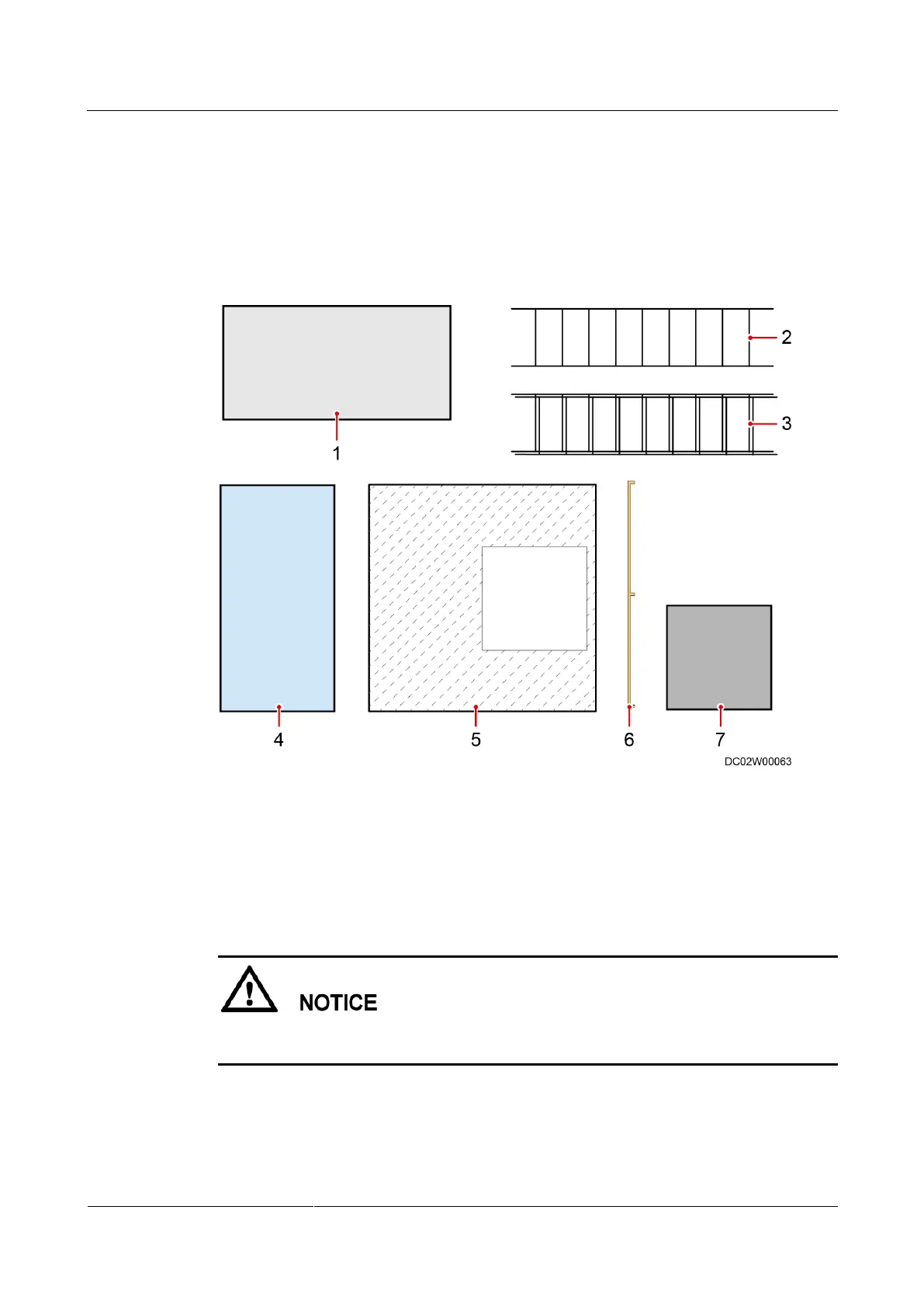

Figure 3-9 Legend
(1) Cabinet
(2) Single layer of cable
tray
(3) Double layer of cable
trays
(4) Flat or rotating skylight
(5) Adjustable skylight
(6) Sealing plate
(7) Column in the equipment
room
If a column in the data center is irregular, ensure that the maximum cross section of the
column does not interfere with cabinets.
