FusionModule2000 Smart Modular Data Center
Installation Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

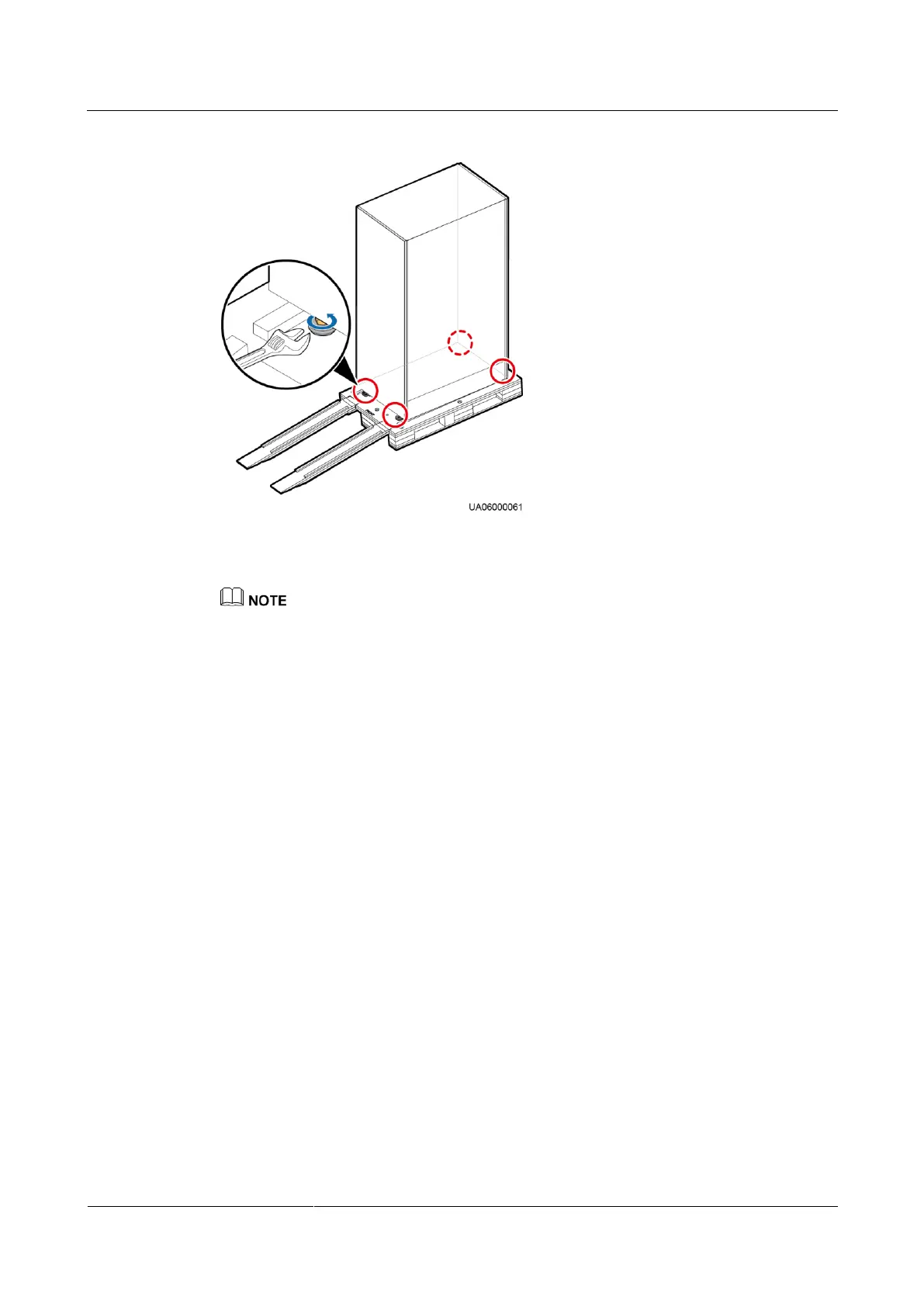

Figure 5-2 Raising the leveling feet
Step 7 Move the PDC over its castors to the installation position.
If there are bases, place the PDC on the base.
----End
5.2 Installing a Tail Frame
For details, see the document delivered with the PDC.
5.3 (Optional) Installing a Top Frame
Context
In 2200 mm scenarios, a top frame is used to increase the cabinet height by 200 mm.
Preparations
Tool: Phillips screwdriver
Material: top frame
Procedure
Step 1 Remove the two M5x10 tapping screws that secure the front door sealing plate on the top of
the cabinet, as shown by (1) in Figure 5-3.
