15.4 Installing Monitoring Devices on the End Door
15.4.1 Monitoring Component Layout for the Sliding Door

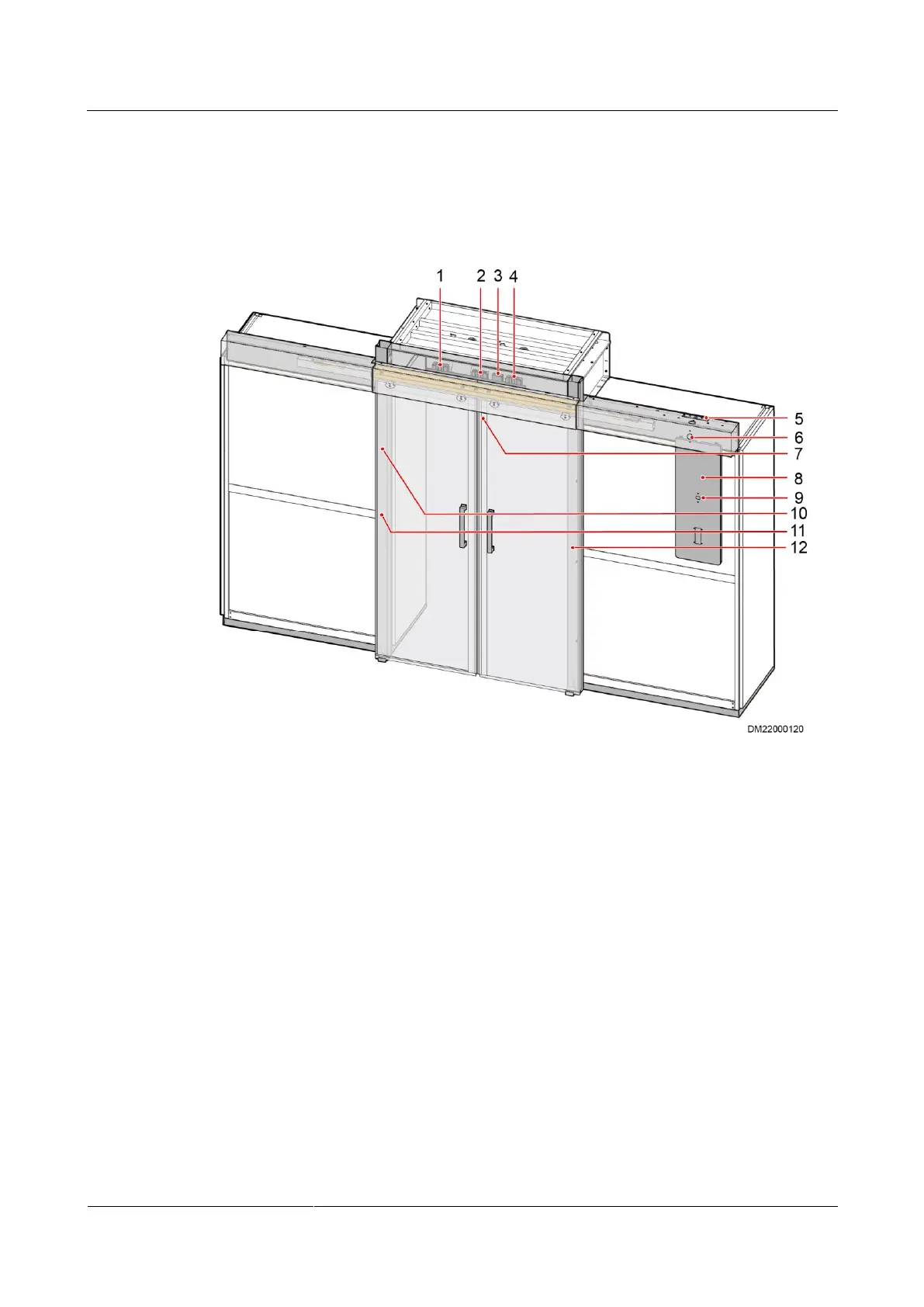

Figure 15-30 Installation positions for monitoring components on the sliding door
(1) AC actuator
(2) Access actuator
(3) Skylight actuator
(4) WiFi converter
(5) AC actuator
(6) Pad power connector
(7) Alarm beacon
(8) Sliding door magnetic lock
(9) Pad mounting kit
(10) Pad
(11) Emergency button
(12) Exit button
(13) Light button
