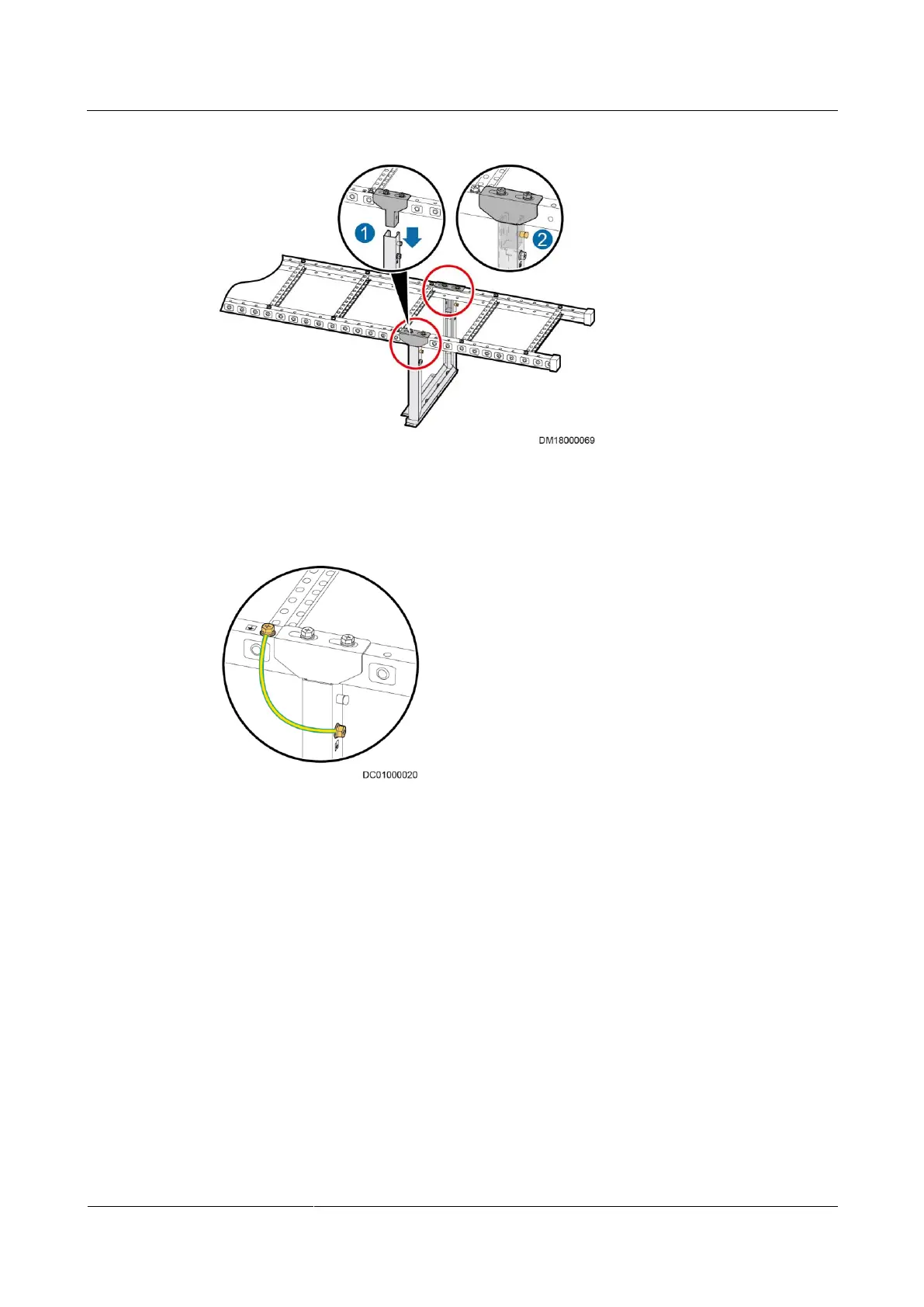

Figure 11-14 Installing a cable ladder
Step 3 Use a ground cable to connect the ground screws on the cable ladder and its supports.
Figure 11-15 Installing a cable tray ground cable
----End
11.2.2 Installing Cable Trays (in Scenarios with a Column)
Prerequisites
Determine the position and mode (combined or layered) for installing cable trays based on the
actual installation environment.
Context
Cable trays can be installed in two modes:

Combined installation
