FusionModule2000 Smart Modular Data Center
Installation Guide
10 Installing the Aisle Containment
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

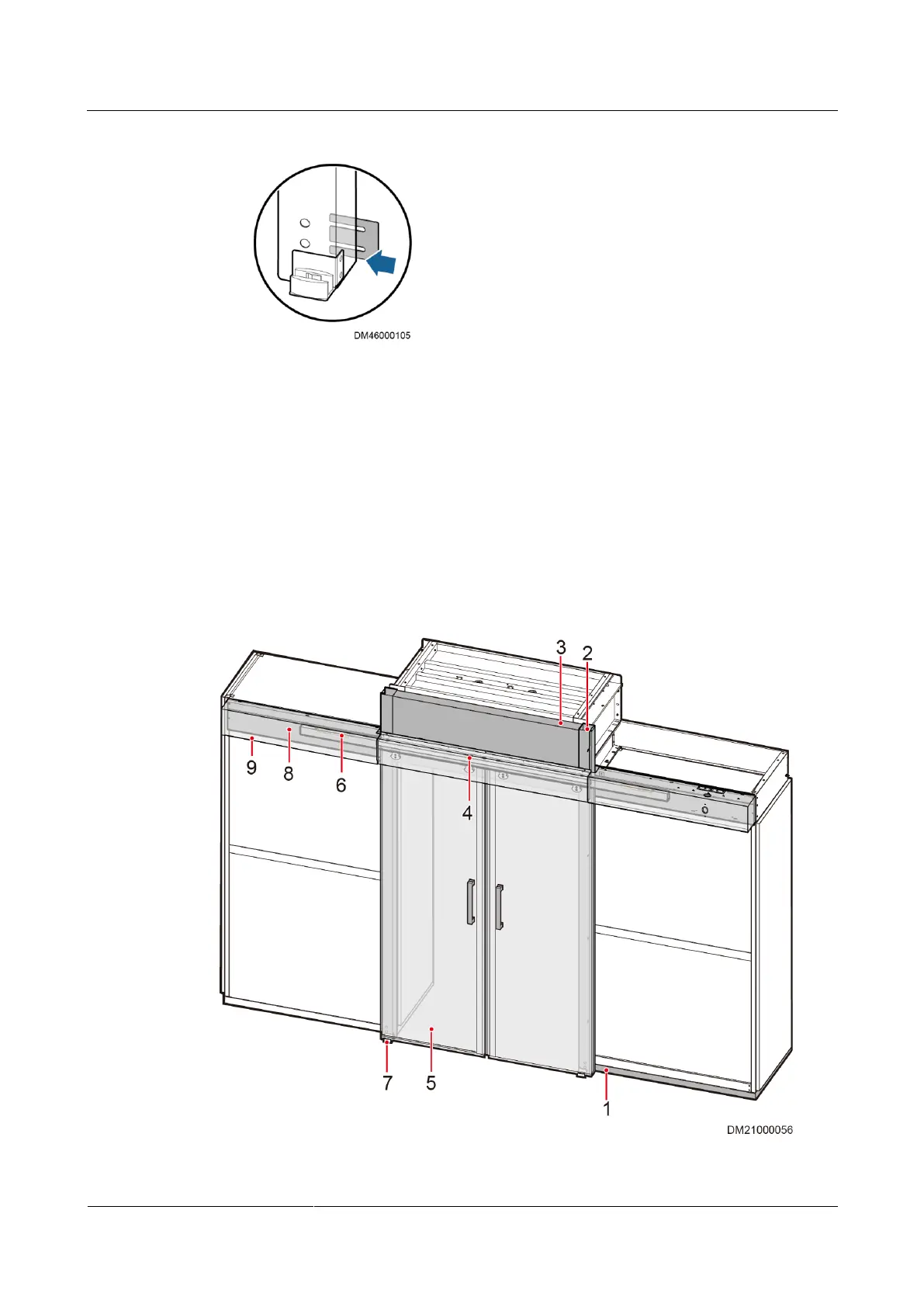

Figure 10-30 Inserting a spacer
10.5.2 Installing Sliding Doors (Dual-Row 2200 mm)
Prerequisites
Before installing a sliding door, ensure that the glass panel is not misshapen or damaged and
is 2068 mm (±2 mm) long and 692 mm (±2 mm) wide. If the requirements are not met,
contact Huawei technical support.
Context
Figure 10-31 Sliding door components
