FusionModule2000 Smart Modular Data Center
Installation Guide
10 Installing the Aisle Containment
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

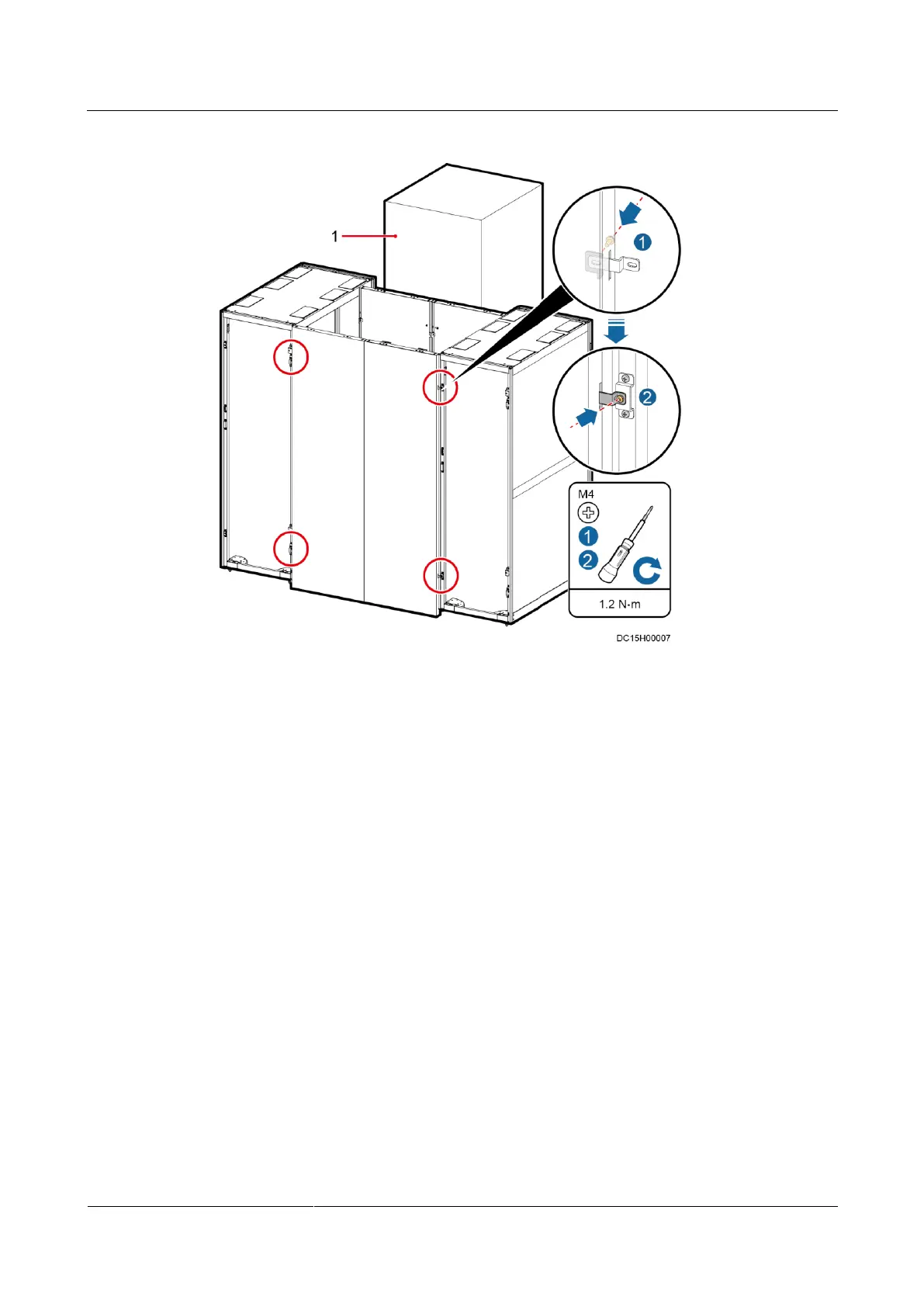

Figure 10-3 Installing sealing plates away from the aisle
----End
10.3 Installing Skylights
10.3.1 Installing Control, Flat, and Rotating Skylights
Context
Install skylights one by one from one end of the smart module based on the site engineering
layout diagram.
The recommended skylight layout is as follows:
Install control skylights at the outermost positions at both ends of the aisle.
Deploy rotating skylights and flat skylights alternately.
Preferentially deploy rotating skylights beside control skylights.
Preparations
Tool: Phillips screwdriver, adjustable wrench
