FusionModule2000 Smart Modular Data Center
Installation Guide
10 Installing the Aisle Containment
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Materials: skylight connective plate, skylight plate, cable separation plate
Document: skylight installation position diagram, onsite engineering layout diagram
Procedure
Step 1 (Optional) Install cable separation plates on control skylights.
Cable separation plates need to be installed only for control skylights.
1. Interconnect cable separation plates, as shown by (1) and (2) in Figure 10-4.

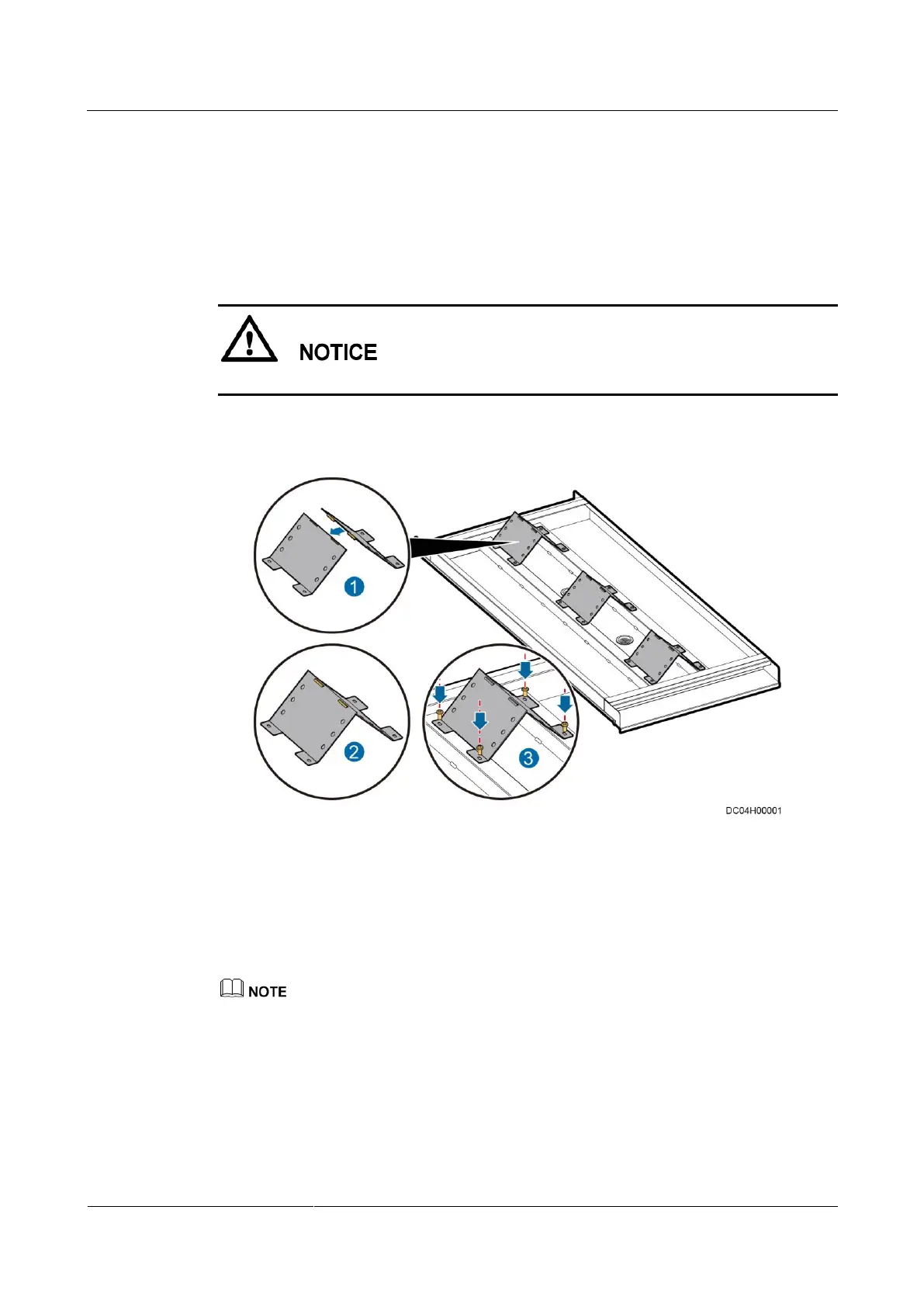

Figure 10-4 Installing cable separation plates
2. Use four M5x10 tapping screws to secure the cable separation plates to the control
skylight plate, as shown by (3) in Figure 10-4.
Step 2 Keep the skylight connective plates flush with the end plane of the cabinet top sealing plate in
the aisle containment. Secure the two skylight connective plates to the appropriate mounting
holes by partially tightening four M8x20 screws, as shown by (1) in Figure 10-5.
In the single-row aisle scenario, keep one skylight connective plate flush with the end plane of the
cabinet top sealing plate and one skylight connective plate flush with the sealing plate.
