Huawei FusionModule2000 - Optional) Installing an In-Room Camera

FusionModule2000 Smart Modular Data Center
Installation Guide
16 (Optional) Installing In-Room Access Control
Devices and Cameras
Issue 02 (2018-03-31)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
264
16.10 (Optional) Installing an In-Room Camera
Preparations
Tool: Phillips screwdriver
Materials: SD card, camera
Procedure
Step 1 Install an SD card.
1. Loosen the screws on the front cover of the camera, remove the front cover, and take out
the inner cover clipped on the lens.

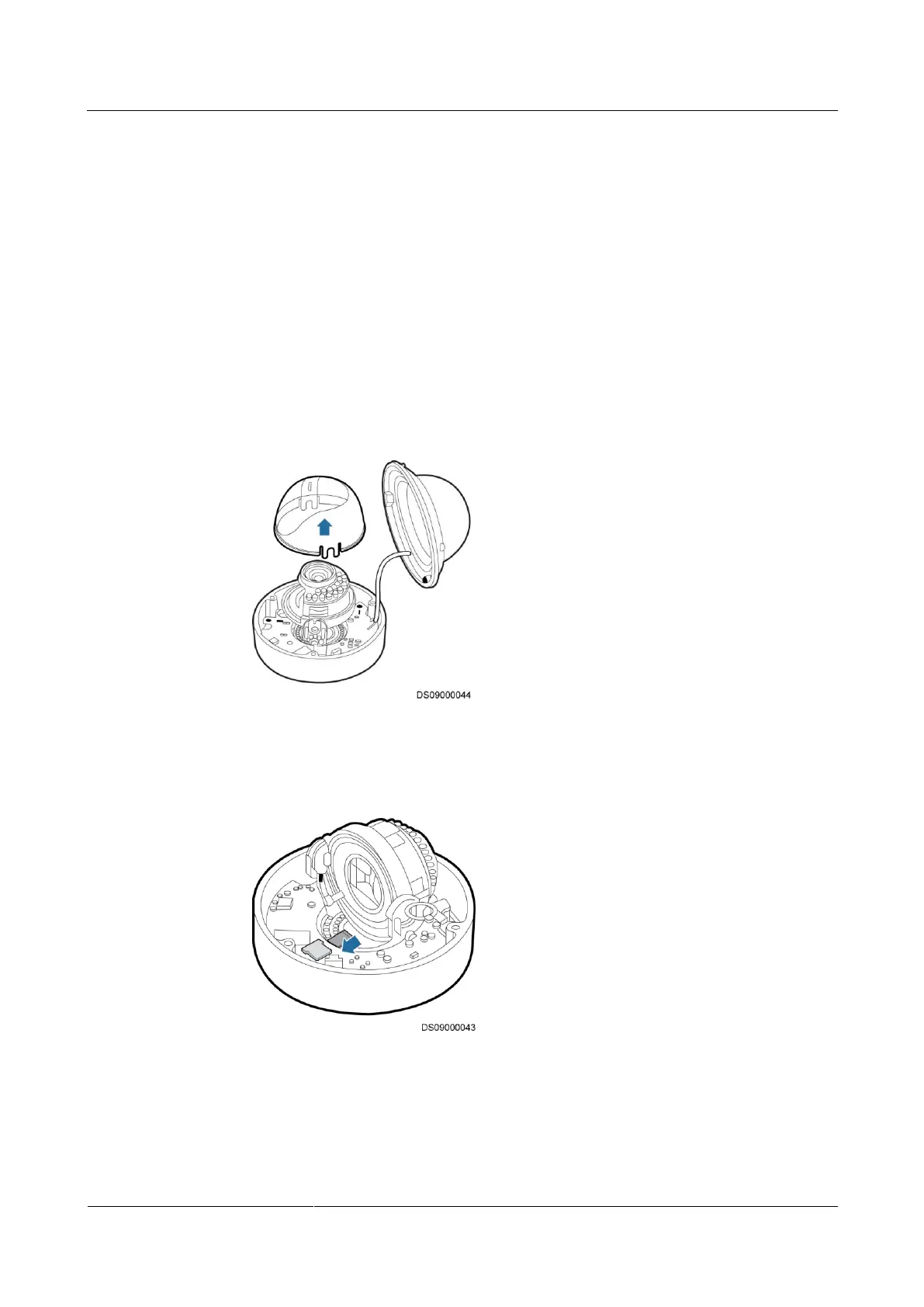

Figure 16-28 Removing the front and inner covers
2. Gently insert the SD card into the SD card slot.
Figure 16-29 Installing an SD card
Step 2 Install the camera base.
