FusionModule2000 Smart Modular Data Center
Installation Guide
16 (Optional) Installing In-Room Access Control
Devices and Cameras
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

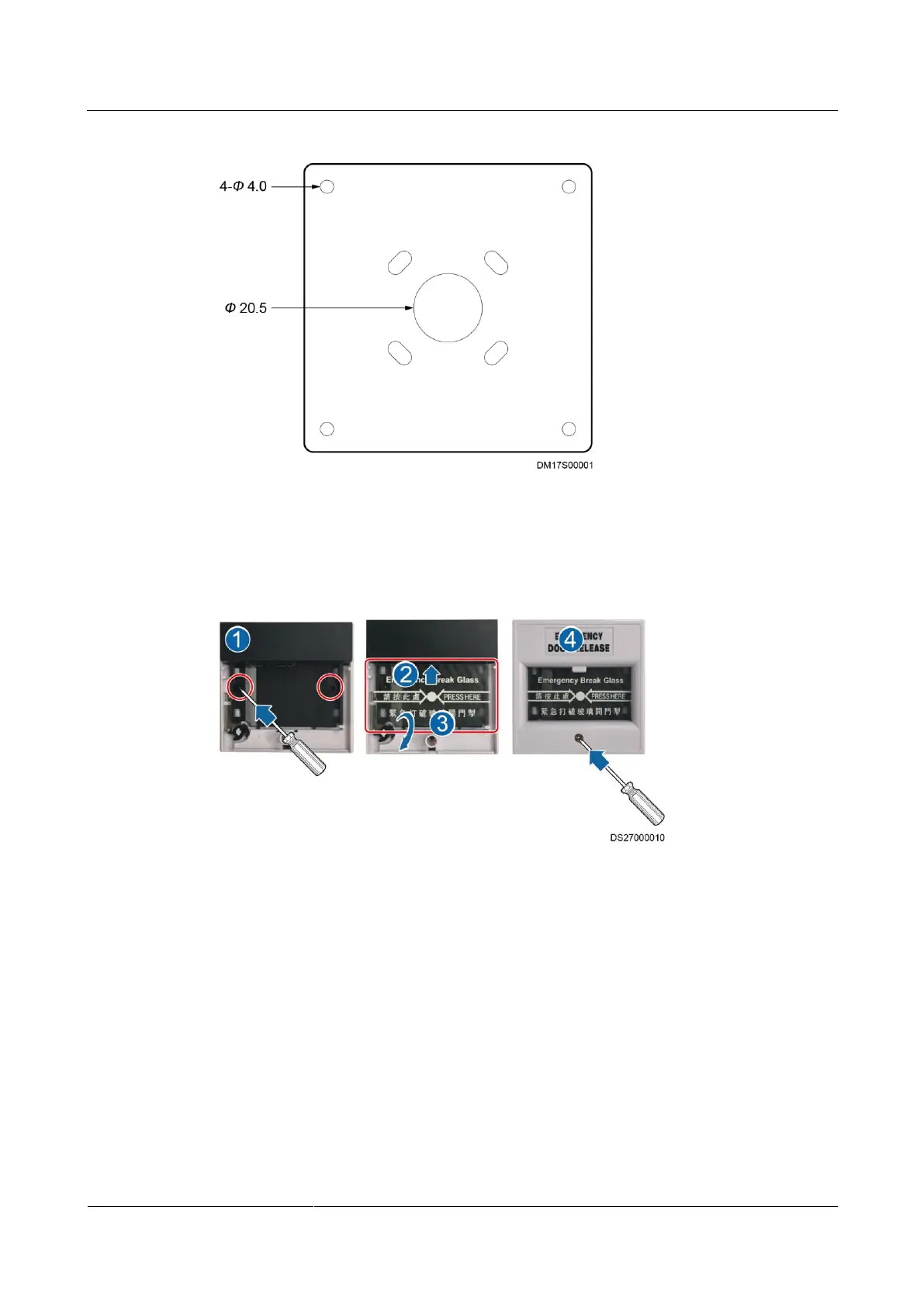

Figure 16-26 Marking mounting holes (unit: mm)
Step 3 Drill holes using a hammer drill, and route cables out of the cable hole.
Step 4 Install the emergency door release button.
Figure 16-27 Installing an emergency door release button
1. Install the base of the emergency door release button, as shown by (1) in Figure 16-27.
2. Install the glass panel of the emergency door release button, as shown by (2) and (3) in
Figure 16-27.
3. Tighten screws of the emergency door release button using a Phillips screwdriver, as
shown by (4) in Figure 16-27.
----End
