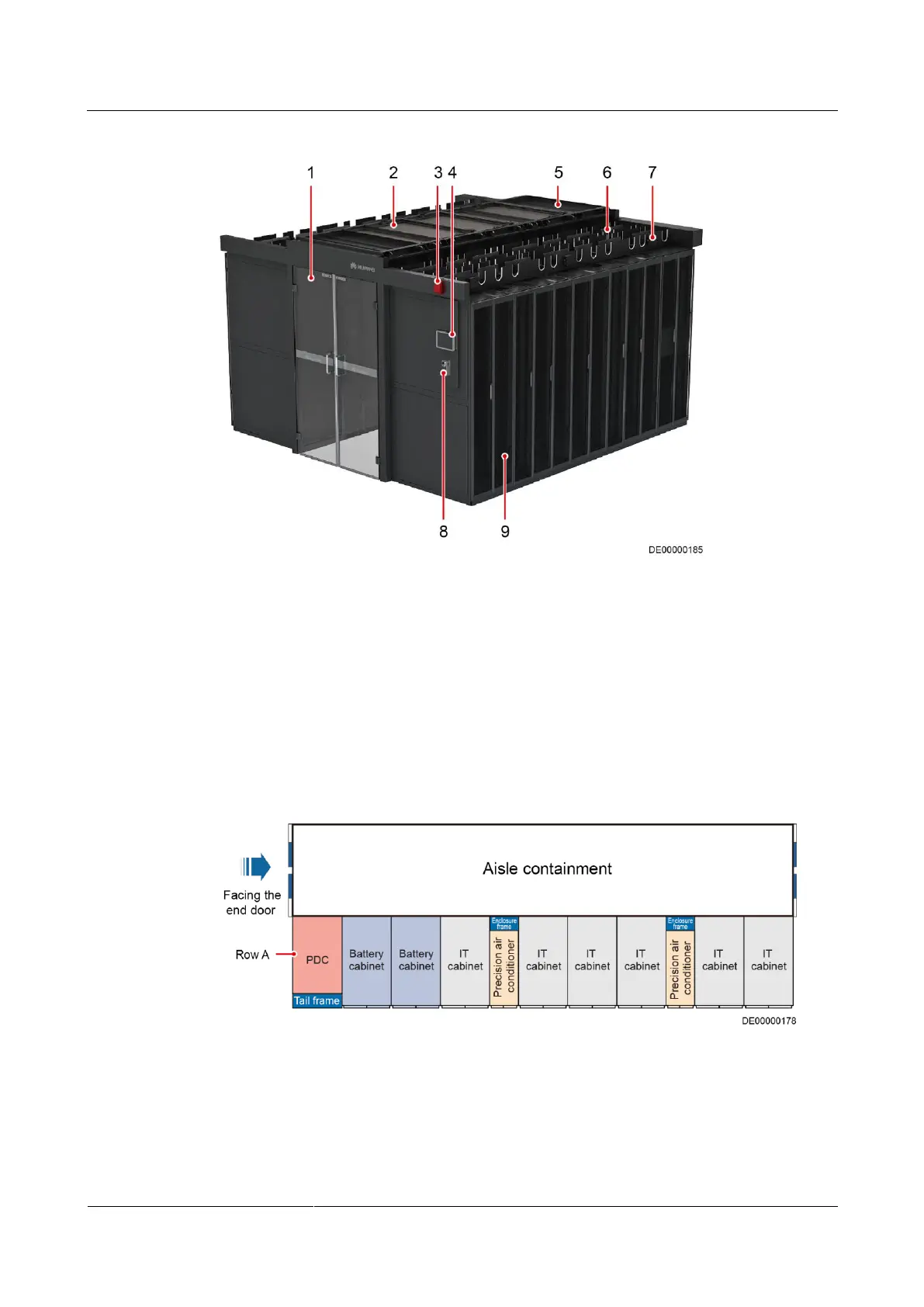

Figure 2-6 Exterior of the dual-row aisle containment

(1) End door

(2) Flat or rotating skylight

(3) For the alarm beacon

(4) For the pad

(5) Control skylight

(6) Cable trough

(7) Smart ETH gateway

(8) For the access control

(9) Cabinet

2.8.2 Power Supply and Distribution Cabinet Scenario

(Single-Row)

Figure 2-7 Floor plan of the single-row aisle containment
