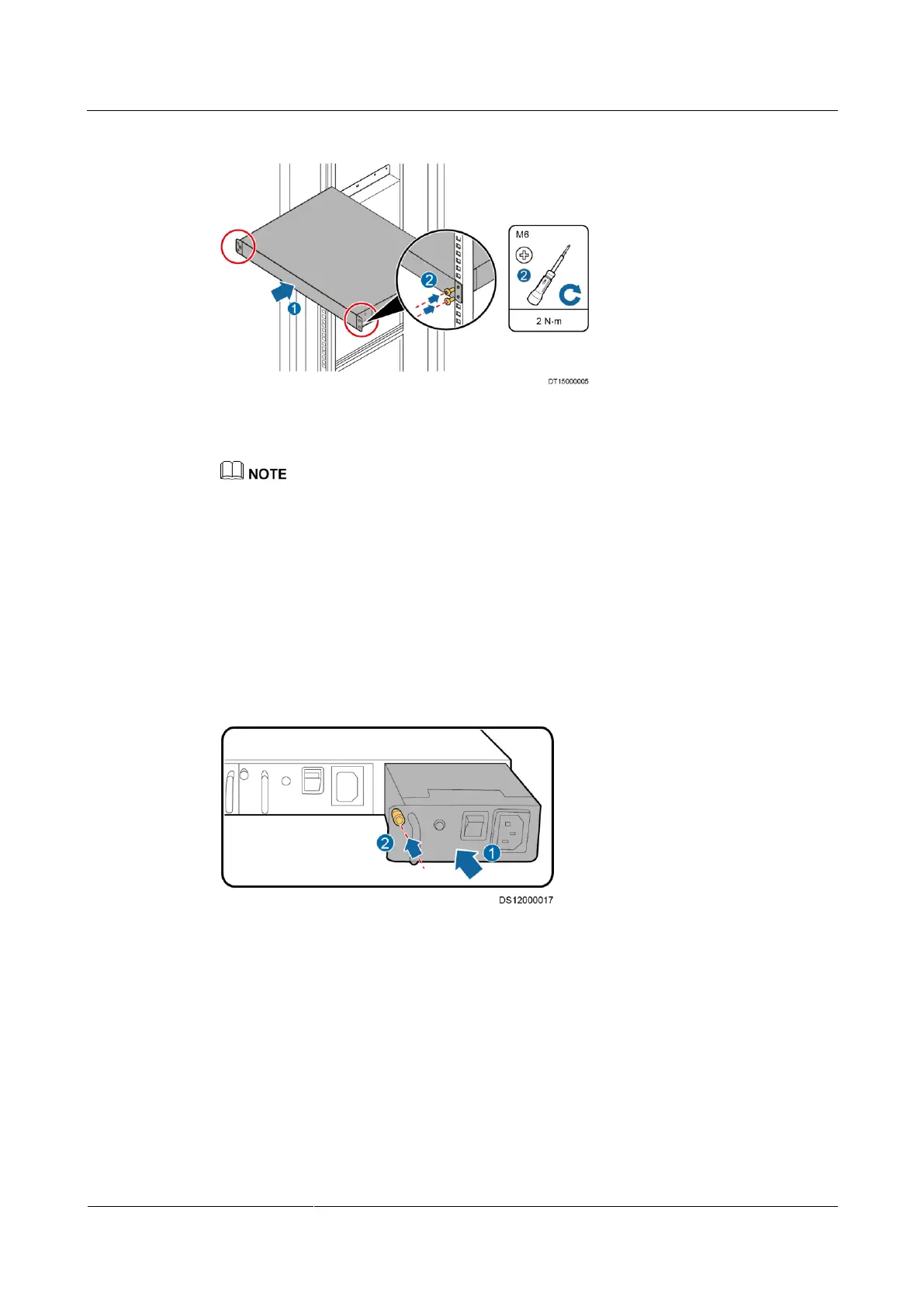

Figure 15-9 Installing a LAN switch
Step 3 Connect the LAN switch power cable to the rPDU.
The positions of power cable ports vary depending on the LAN switch models. Connect the power cable
based on the actual power port of the LAN switch.
----End
Follow-up Procedure
If a 24-port LAN switch is configured, two power modules need to be installed for the LAN
switch onsite. Insert the power modules into the power slots of the 24-port LAN switch, and
tighten the captive screws on the power module panel.
Figure 15-10 Installing the power modules for a 24-port LAN switch
15.1.4 Installing an ECC800
Preparations
Tool: Phillips screwdriver
Materials: ECC800, SIM card, 2.4G antenna, 3G antenna
Document: installation position diagram for monitoring devices in the network cabinet
