FusionModule2000 Smart Modular Data Center

Installation Guide

17 Connecting Cables

Issue 02 (2018-03-31)

Huawei Proprietary and Confidential

275

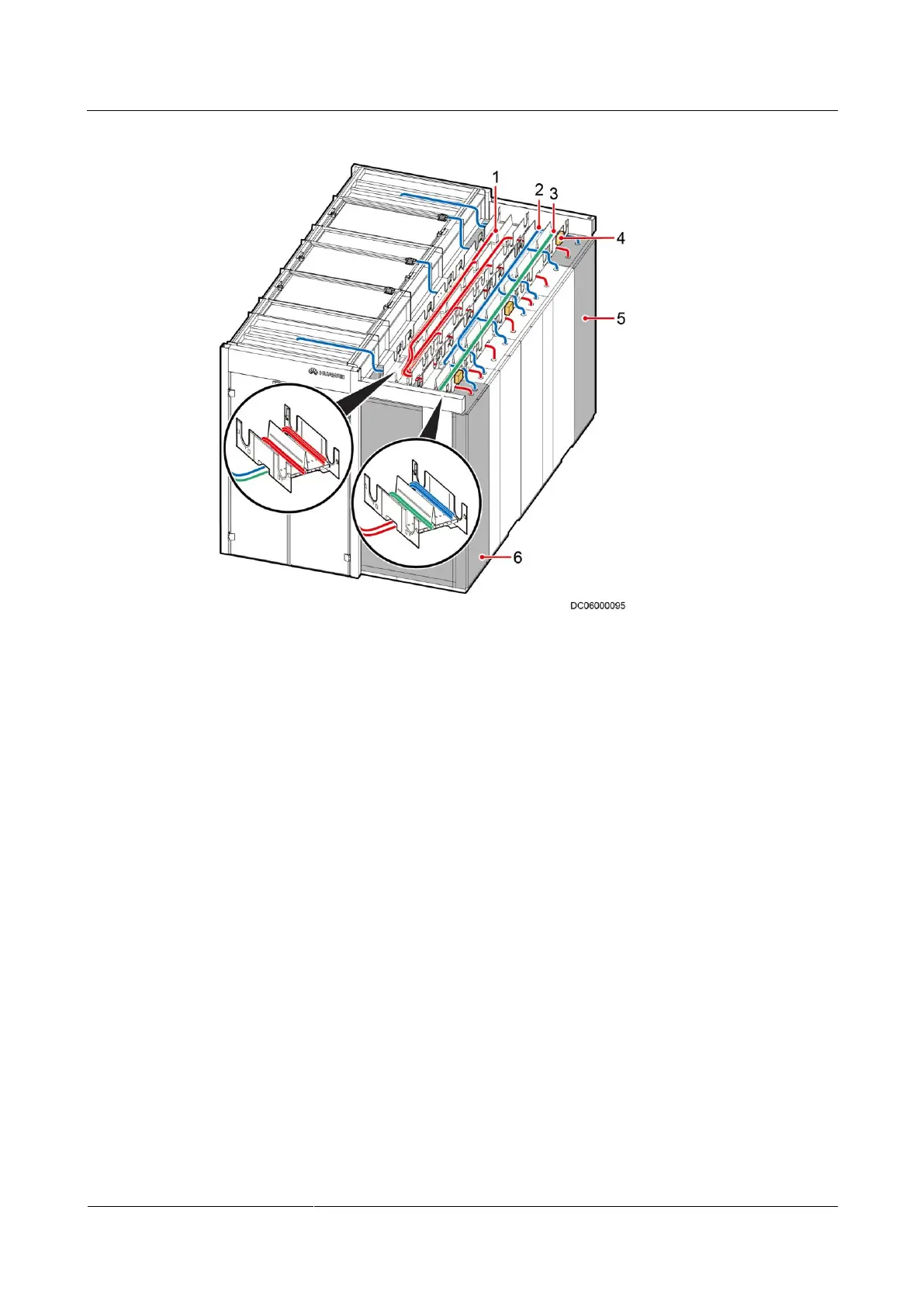

Figure 17-10 Routing power cables and signal cables

(1) Power cable

(2) Signal cable

(3) Optical fiber

(4) Smart ETH gateway

(5) Network cabinet

(6) PDC

17.5 Cable Routes for the Dual-Row Aisle Containment

Scenario (Smart Busway)
