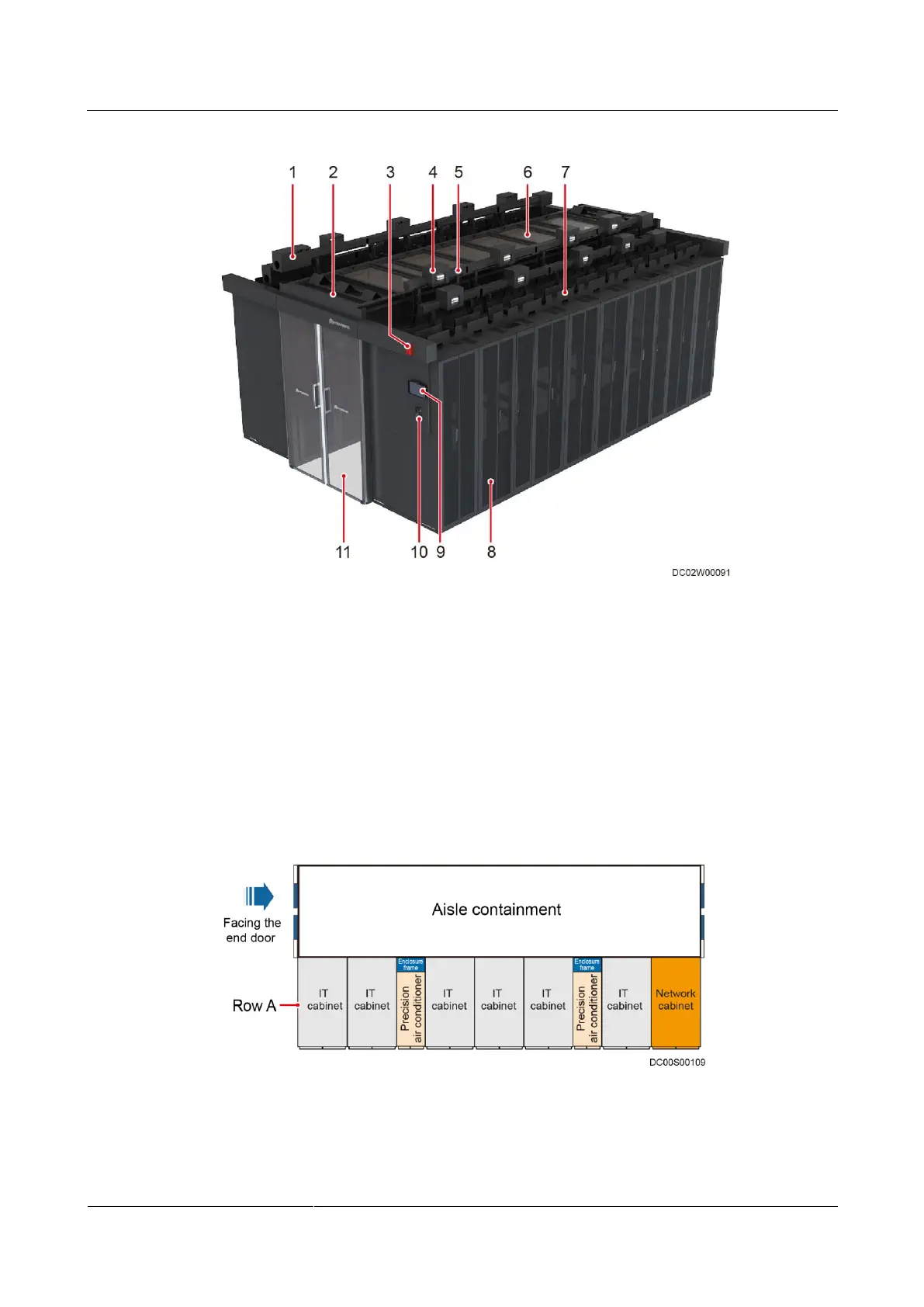

Figure 2-10 Exterior of the dual-row aisle containment
(1) General input unit
(2) Control skylight
(3) For the alarm beacon
(4) Power distribution unit
(5) Busbar trunking unit
(6) Flat or rotating skylight
(7) Cable trough
(8) Cabinet
(9) For the pad
(10) For the access control
device
(11) End door
2.8.4 Smart Busway Scenario (Single-Row)
Figure 2-11 Floor plan of the single-row aisle containment
