Huawei FusionModule2000 - Smart Busway Scenario (Dual-Row)

To Next Page

To Previous Page

FusionModule2000 Smart Modular Data Center

Installation Guide

2 Installation Preparations

Issue 02 (2018-03-31)

Huawei Proprietary and Confidential

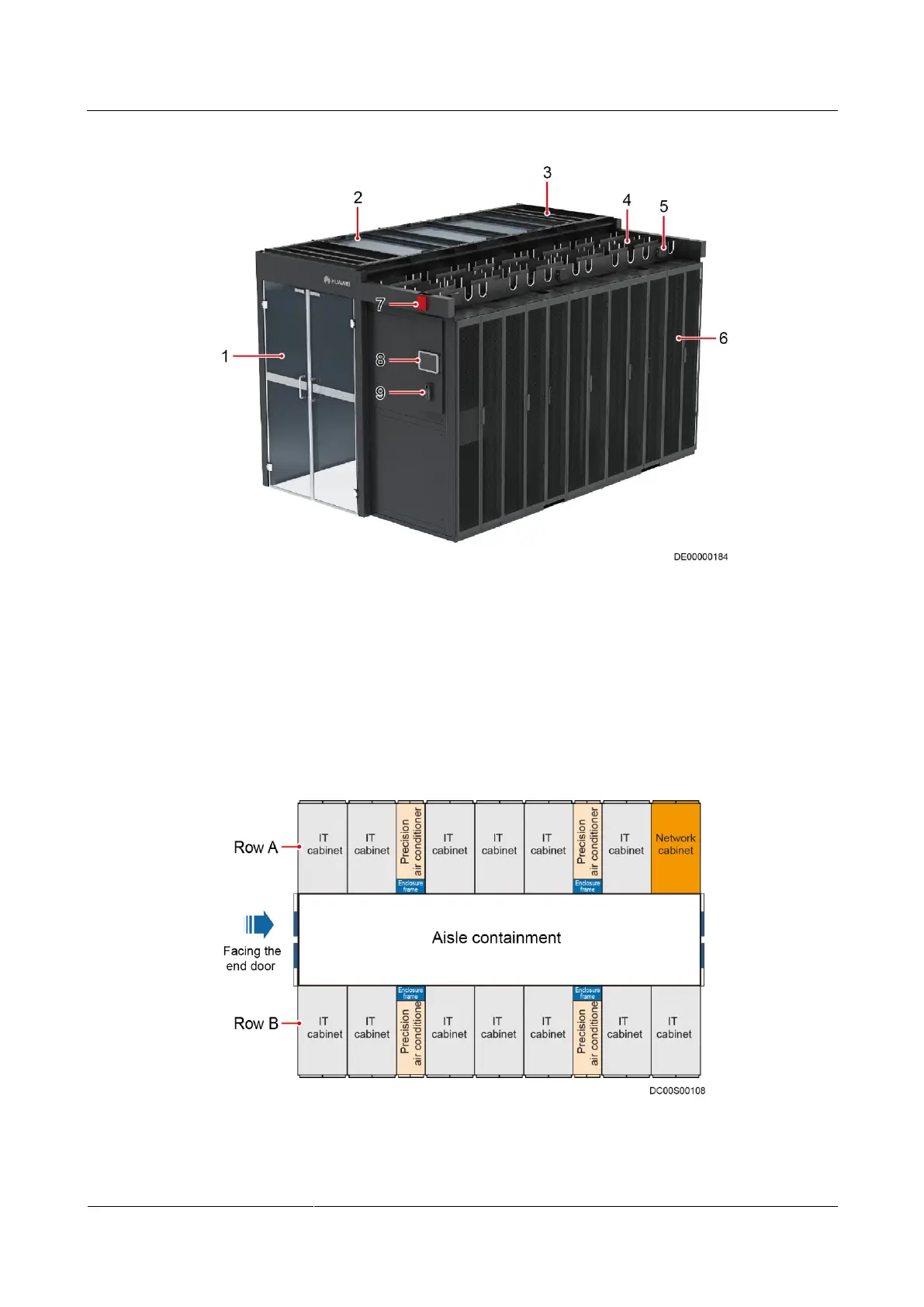

Figure 2-8 Exterior of the single-row aisle containment

(1) End door

(2) Flat or rotating skylight

(3) Control skylight

(4) Cable trough

(5) Smart ETH gateway

(6) Cabinet

(7) For the alarm beacon

(8) For the pad

(9) For the access control

2.8.3 Smart Busway Scenario (Dual-Row)

Figure 2-9 Floor plan of the dual-row aisle containment

Main Page
