17.6 Cable Routes for the Single-Row Aisle Containment
Scenario (Smart Busway)

Ensure that strong-current cables and weak-current cables are at least 100 mm away from
each other.

Connect the power cables from the general input unit side to the smart module.

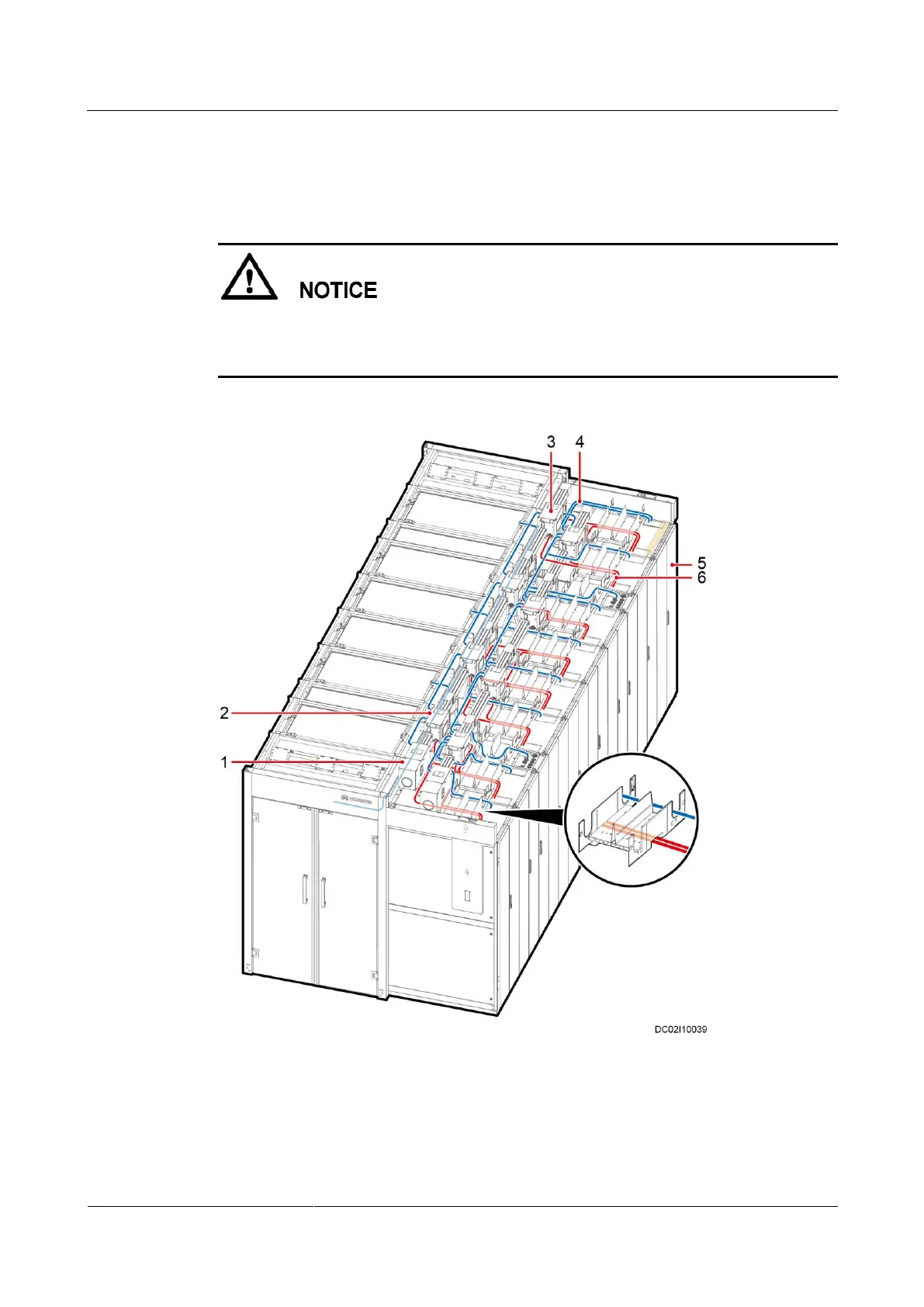

Figure 17-12 Routing power cables and signal cables
(1) General input unit
(2) Power distribution unit
(3) Conversion unit
(4) Signal cable
(5) Network cabinet
(6) Power cable
