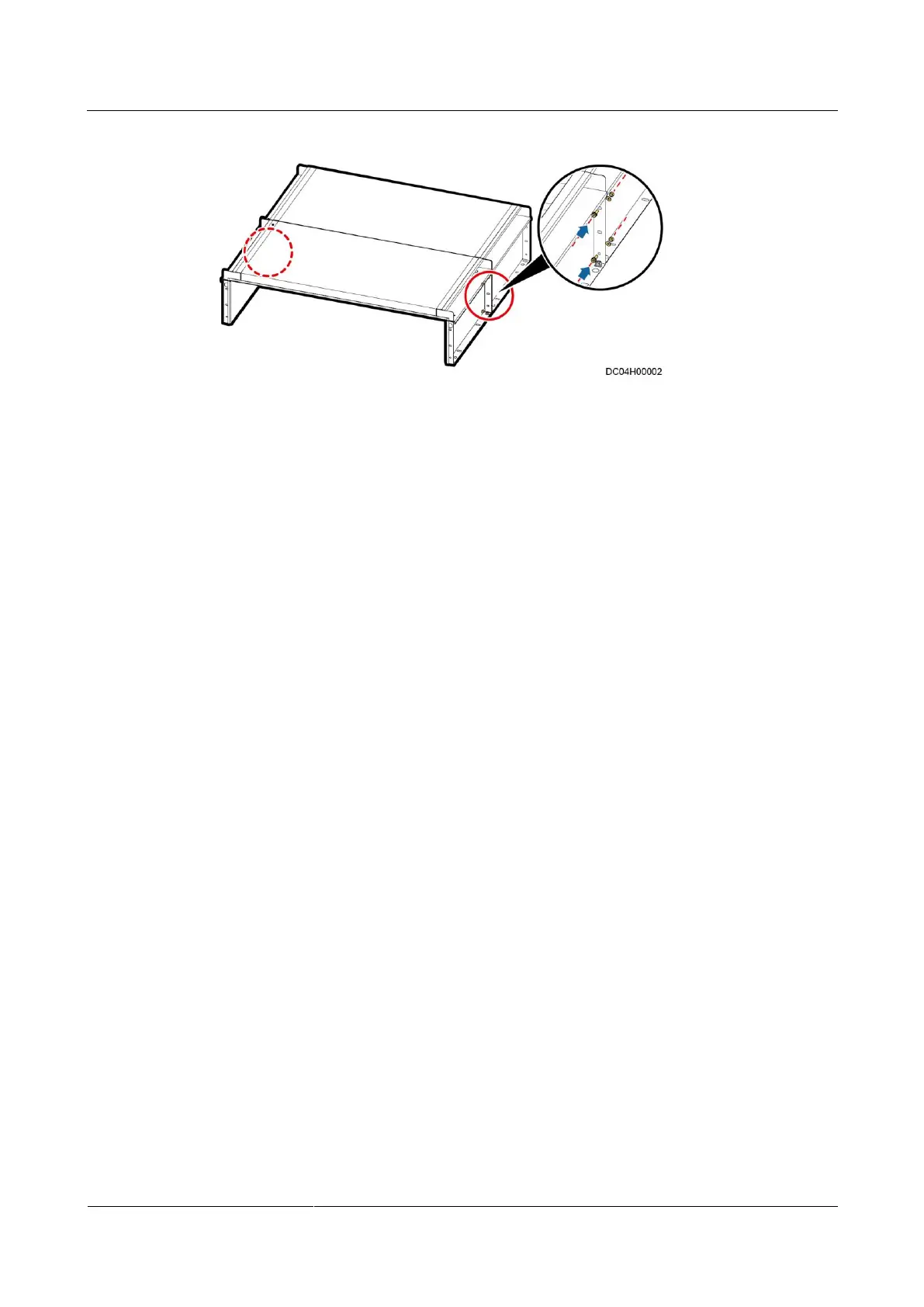

Figure 10-6 Connecting adjacent skylight connective plates
Step 6 Install other skylights in the same way.
Step 7 Tighten the screws on the skylight connective plates.
----End
10.3.2 Installing Adjustable Skylights (in Scenarios with a
Column)
Prerequisites
The sealing plates near the aisle have been installed and secured.
Preparations
Tools: Phillips screwdriver, hook knife, marker, hand-held drill
Materials: skylight connective plate, telescopic edge, PC plate fastener, PC plate support, PC
plate, L-shaped mounting bracket
Procedure
Step 1 Secure skylight connective plates to sealing plates or cabinets using eight M8 bolts.
