10.3.3 (Optional) Grounding Control Skylights

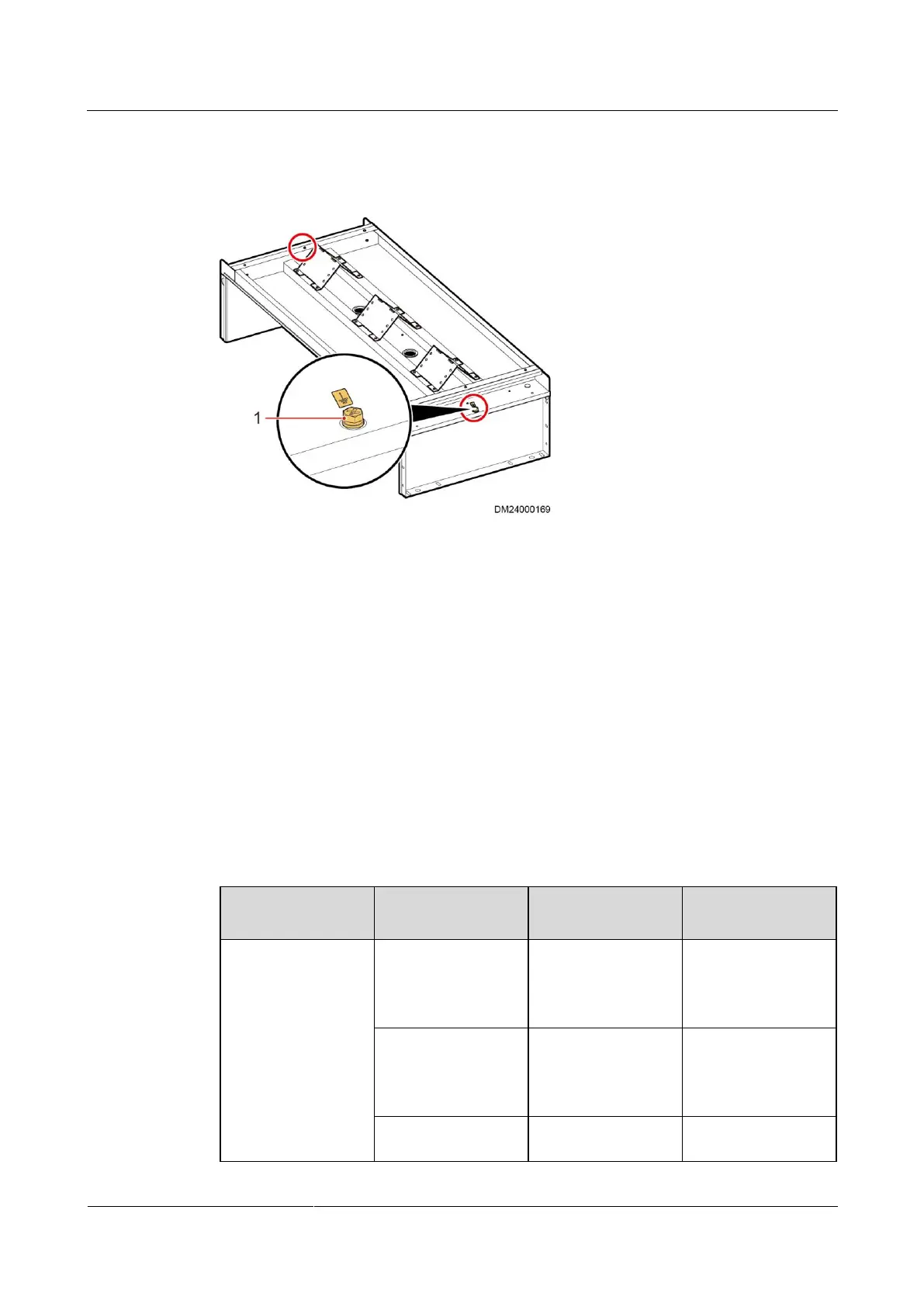

Figure 10-17 Control skylight ground points
(1) Ground point
Connect one end of the control skylight ground cable to any ground point on the control
skylight (as shown by 1 in Figure 10-17), and secure the other end to the top of the cabinet
using M5x10 tapping screws.
10.4 Installing the Cabinet Bottom Sealing Plate
Context
Cabinet bottom sealing plates need to be installed only at the bottom of 2000 mm high
cabinets.
Table 10-3 Specifications of cabinet bottom sealing plates
Installation
Position
Type
BOM Number
Notice
Middle cabinet
600 mm wide front
and rear sealing
plates
21242005
Applies to cabinets
that are 600 mm
wide and 2000 mm
high.
800 mm wide front
and rear sealing
plates
21242301
Applies to cabinets
that are 800 mm
wide and 2000 mm
high.
300 mm wide front
and rear sealing
Available in the
materials for 300
Applies to 300 mm
wide air
