FusionModule2000 Smart Modular Data Center
Installation Guide
10 Installing the Aisle Containment
Issue 02 (2018-03-31)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
108
Installation
Position
Type
BOM Number
Notice
plates
mm wide air
conditioners.
conditioners.
End cabinet
Front and rear
sealing plates + side
sealing plates
(assembled by five
components)
Available in the
aisle door materials.
Applies to only end
cabinets.
Cabinets at both
sides of a column
(scenarios with a
column)
Front and rear
sealing plates + side
sealing plates
(assembled by five
components)
21242007
Applies to only
cabinets at both
sides of a column in
scenarios with a
column.

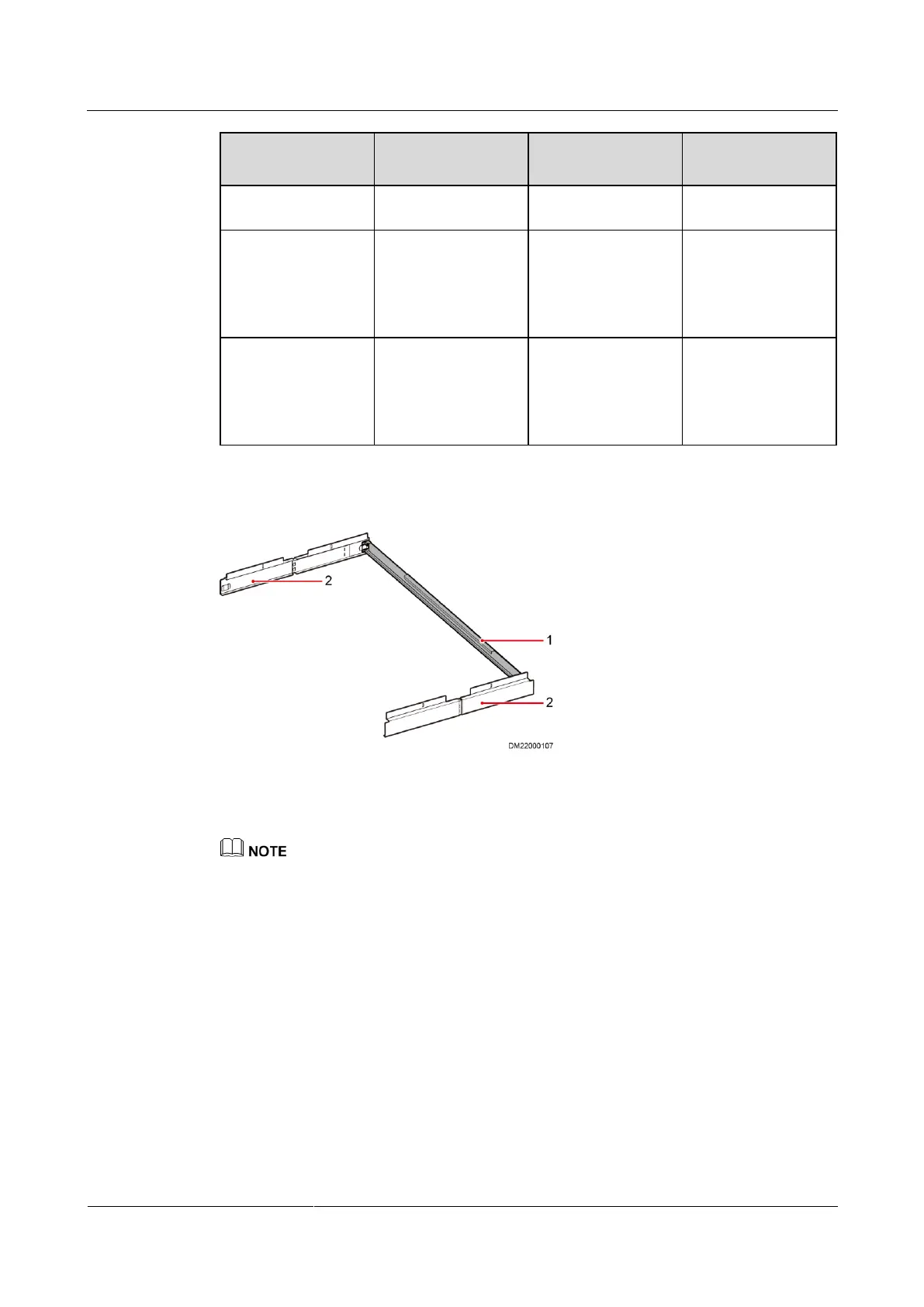

Figure 10-18 Bottom sealing plates for end cabinets
(1) Side sealing plate
(2) Front or rear sealing plate
Each of the front and rear sealing plates is assembled by two components. The length after assembly can
be 600 mm or 800 mm.
