FusionModule2000 Smart Modular Data Center
Installation Guide
A Appendix
Issue 02 (2018-03-31)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
299
A.3 Preparing a Monitoring Cable
Prerequisites

A network cable, cord end terminals, and RJ45 connectors are prepared.

The following tools are prepared:
− Wire stripper
− Crimping tool
− RJ45 crimping tool
− Electrician's knife
− Insulation tape
Preparing a Cord End Terminal
Figure A-8 shows how to prepare a cord end terminal.
1. Strip the insulation layer of cable B to expose cable core C.
2. Put cable core C through cord end terminal A.
3. Crimp the metal part of cord end terminal A using the crimping tool.

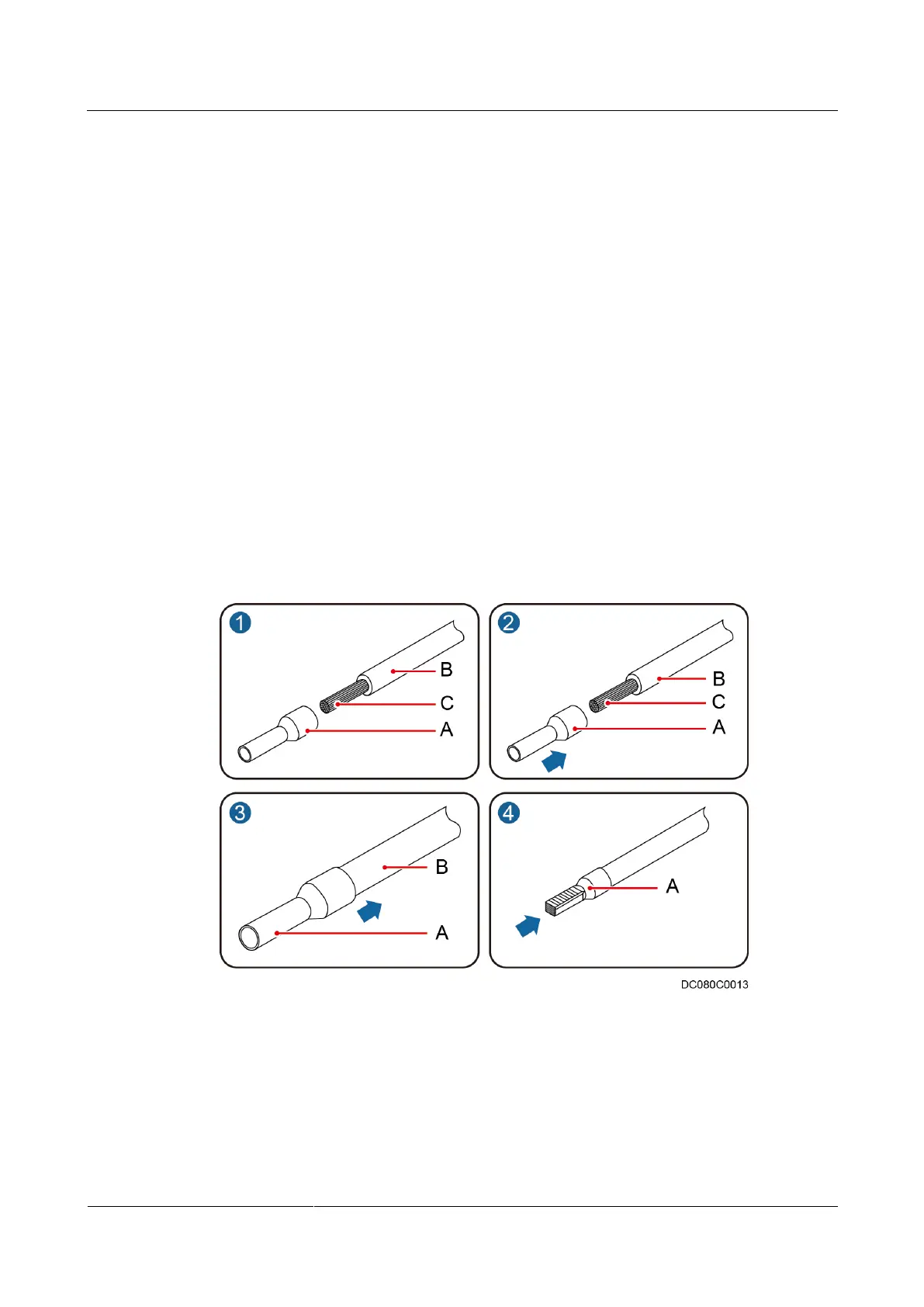

Figure A-8 Preparing a cord end terminal
(A) Cord end terminal connector
(B) Insulation layer
(C) Copper core wire
Preparing an RS485 Monitoring Cable
Figure A-9 shows how to prepare an RS485 monitoring cable for the ECC collector.
