FusionModule2000 Smart Modular Data Center
Installation Guide
15 Installing Monitoring Devices
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Step 3 Remove the nut from the pad mounting bracket and secure the bracket to the pad mounting kit
using the nut, as shown by (2) in Figure 15-59.
Step 4 Route the pad power cable through the cable hole in the pad mounting kit and connect it to the
pad, as shown by (3) in Figure 15-59.
Step 5 Adjust the foot in the upper part of the pad mounting bracket and clamp the pad into the
mounting bracket, as shown by (4) in Figure 15-59.

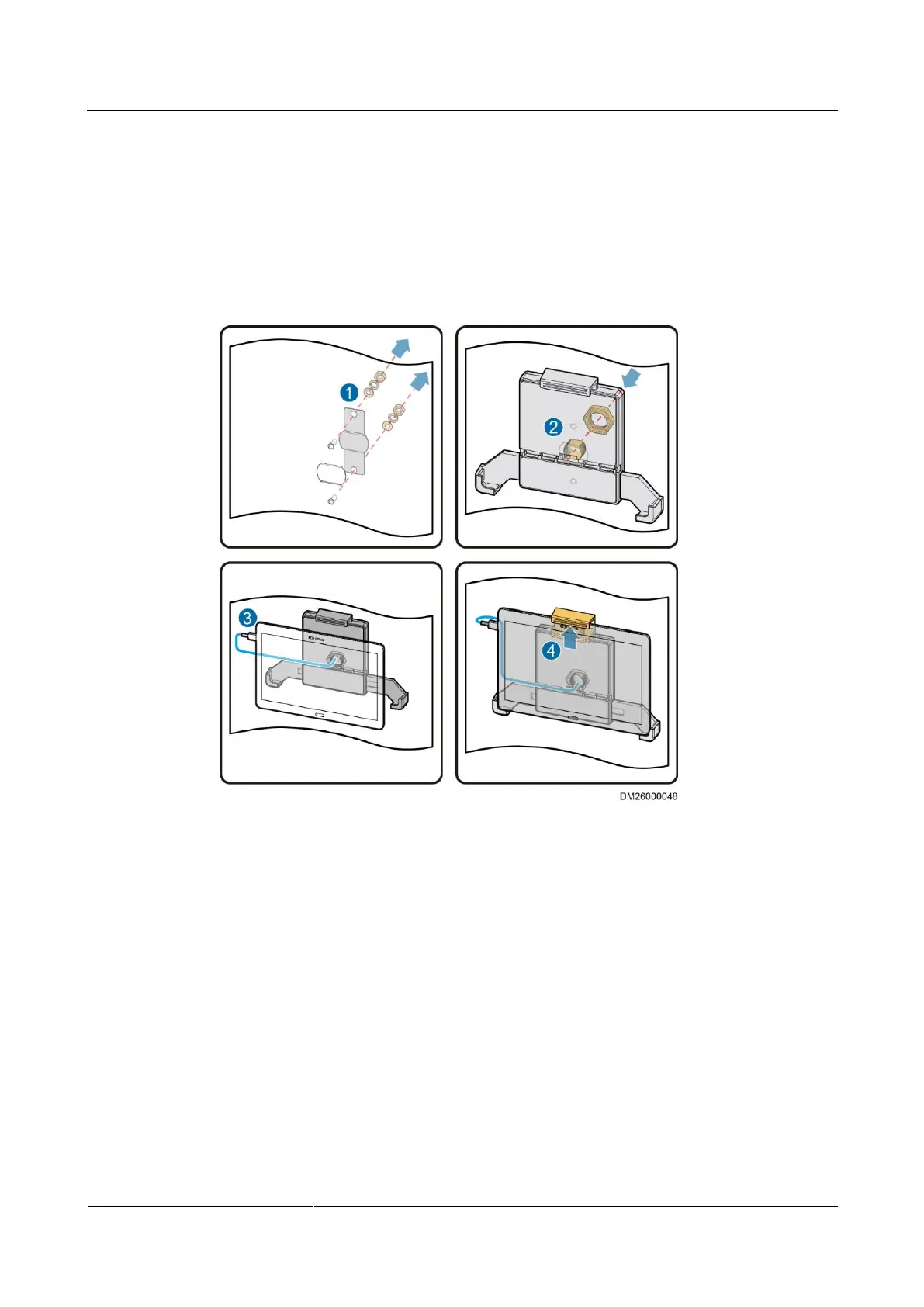

Figure 15-59 Installing a pad
----End
15.4.9.7 Securing the Pad Mounting Kit
Preparations
Tool: Phillips screwdriver
Materials: pad mounting kit, baffle plate
Procedure
Step 1 Lay out the cables of monitoring components on the pad mounting kit.
Step 2 Clamp the pad mounting kit to the hanging kit.
Step 3 Secure the pad mounting kit to the hanging kit using two M5x10 tapping screws.
