6 Installing the Network Cabinet, IT Cabinet, and Battery
Cabinet
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

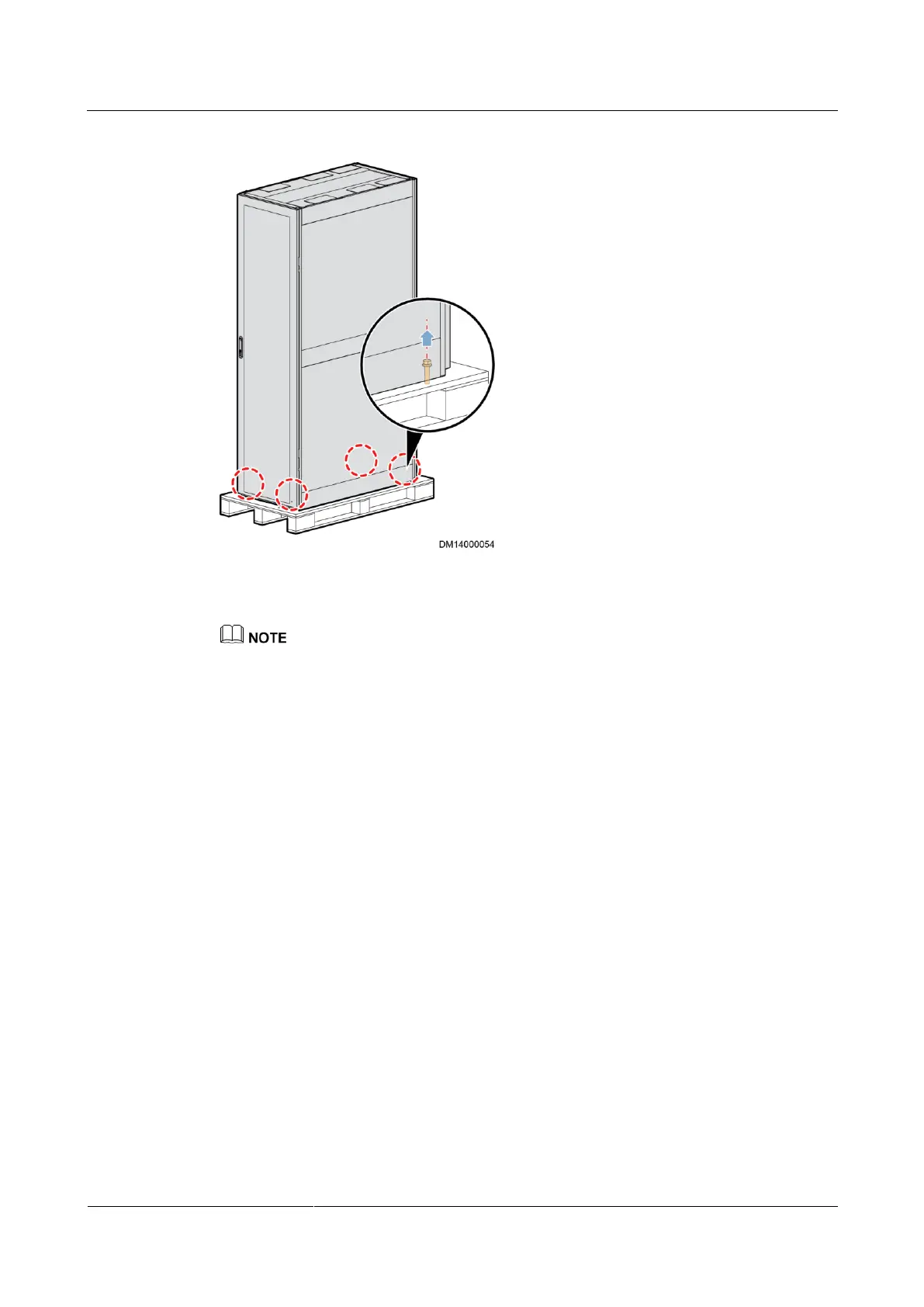

Figure 6-1 Removing screws
Step 3 Remove the cabinet from the pallet and place the cabinet in the installation position.
If there is a base, place the cabinet on the base.
----End
6.2 (Optional) Installing Side Plates for IT Cabinets
Context
If an IT cabinet is not equipped with side plates and placed in the end position, side
plates need to be installed to ensure that the outer side of an end cabinet has side plates.
If two cabinets share side plates and placed in the end position, the side plates need to be
adjusted to ensure that the outer side of an end cabinet has side plates.
Preparations
Tools: Phillips screwdriver, flat-head screwdriver
Material: side plate
Procedure
Step 1 Install floating nuts.
To Next Page
