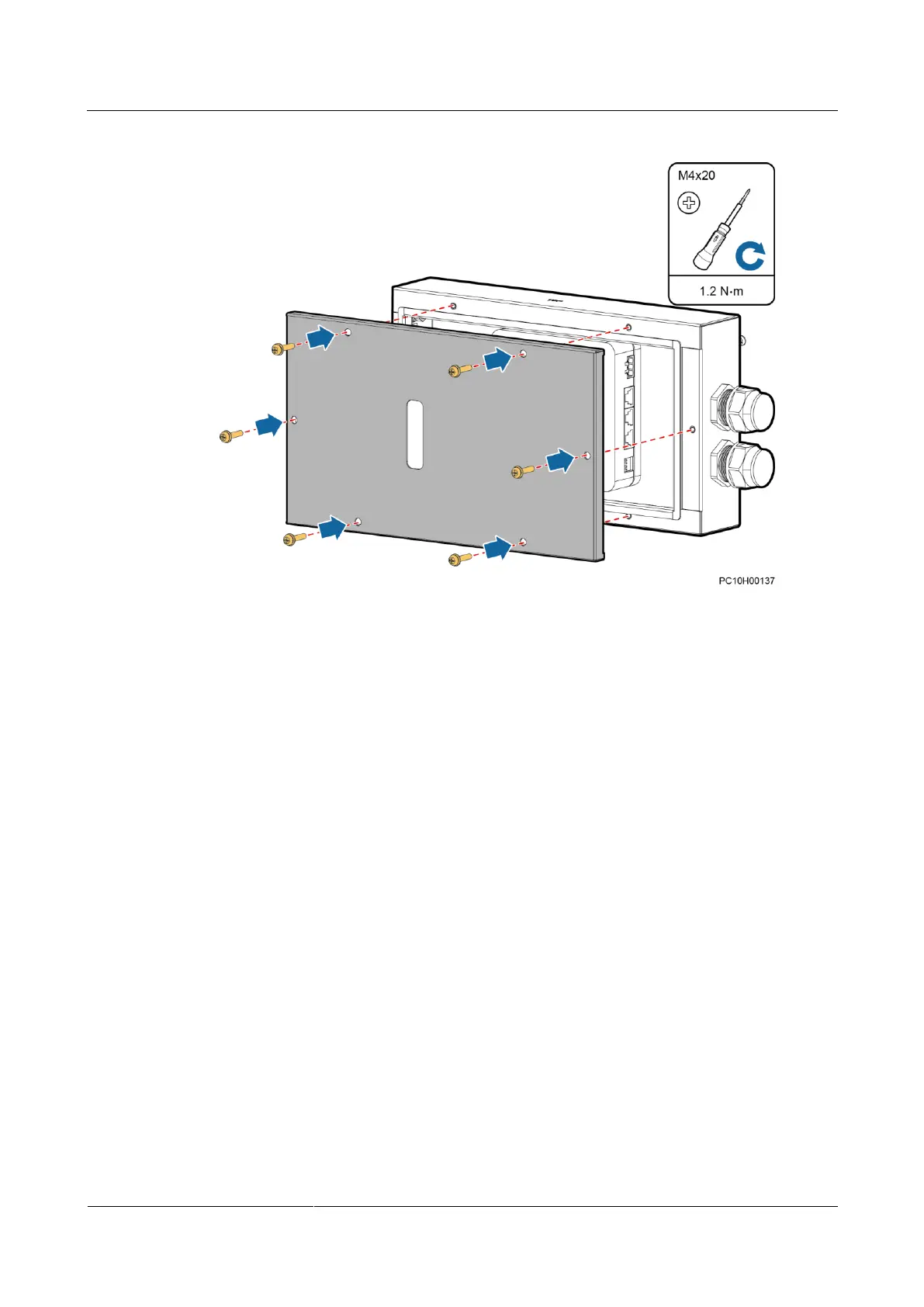

Figure 16-7 Reinstalling the waterproof box cover
----End
16.3 (Optional) Installing an In-Room Double Door
Magnetic Lock
Prerequisites

Verify that the room door is a revolving double-swing wooden door, and that the door
frame is wider than 42 mm.

The cable routes are planned.
Context

The BOM number of a double door magnetic lock is 02070261.

A double door magnetic lock is installed on a room door.
Procedure
Step 1 Fold the delivered cutout template along the dotted line by 90°, as shown by (2) in Figure
16-8.
Step 2 Close the door, place the cutout template near the door top at the far end of the door axis,
mark the mounting holes, and drill holes, as shown in Figure 16-8.
