FusionModule2000 Smart Modular Data Center
Installation Guide
16 (Optional) Installing In-Room Access Control
Devices and Cameras
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

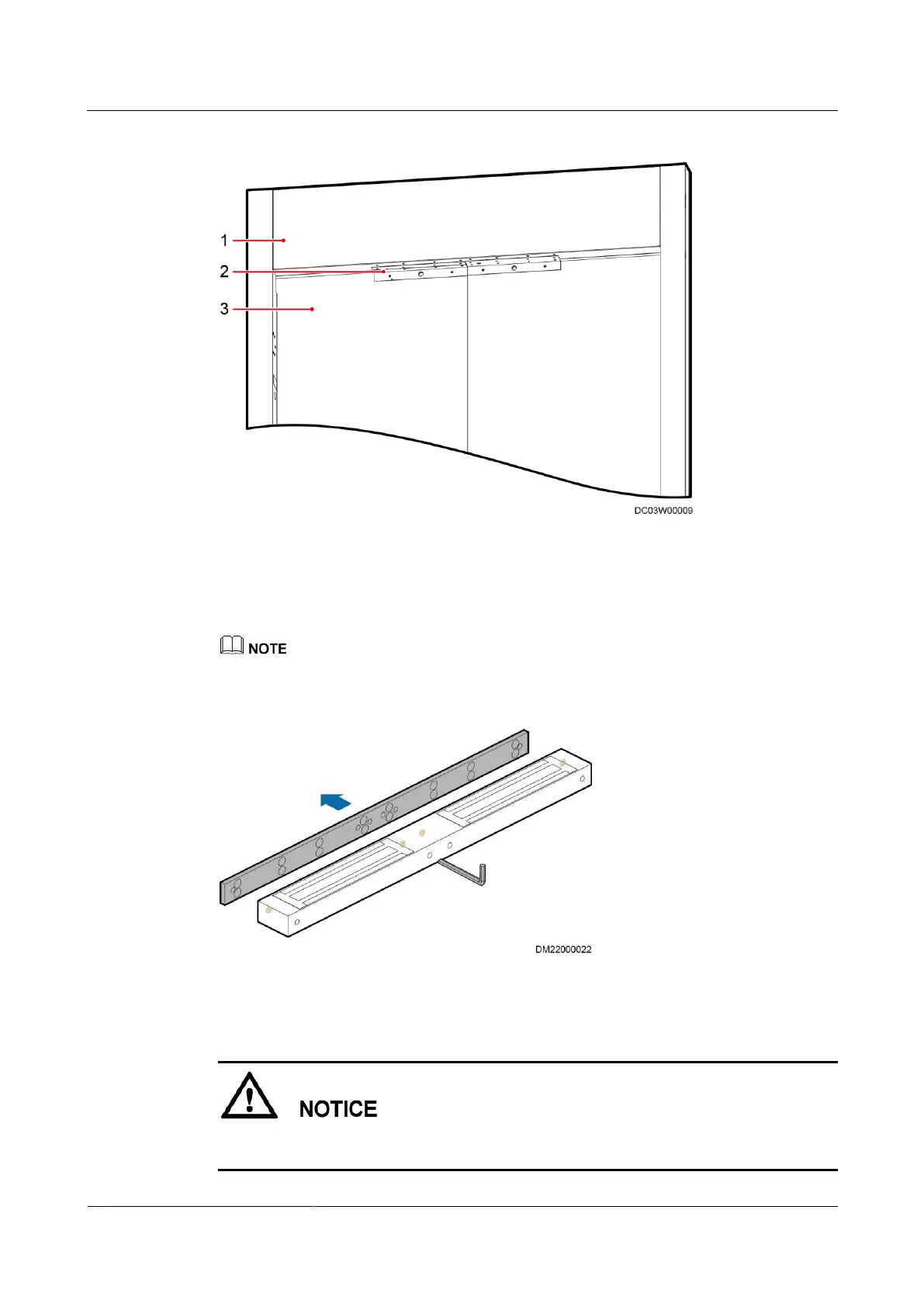

Figure 16-8 Marking mounting holes
Step 3 Remove the hoisting strip using the delivered hex key.
Four hex socket screws need to be removed in this step.
Figure 16-9 Removing the hoisting strip
Step 4 Secure the hosting strip using the delivered screws, as shown by (1) in Figure 16-10.
Pay attention to the direction of the hoisting strip, and ensure that the bulging surface of the
magnetic lock faces the magnet.
