FusionModule2000 Smart Modular Data Center
Installation Guide
7 Installing Air Conditioners
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

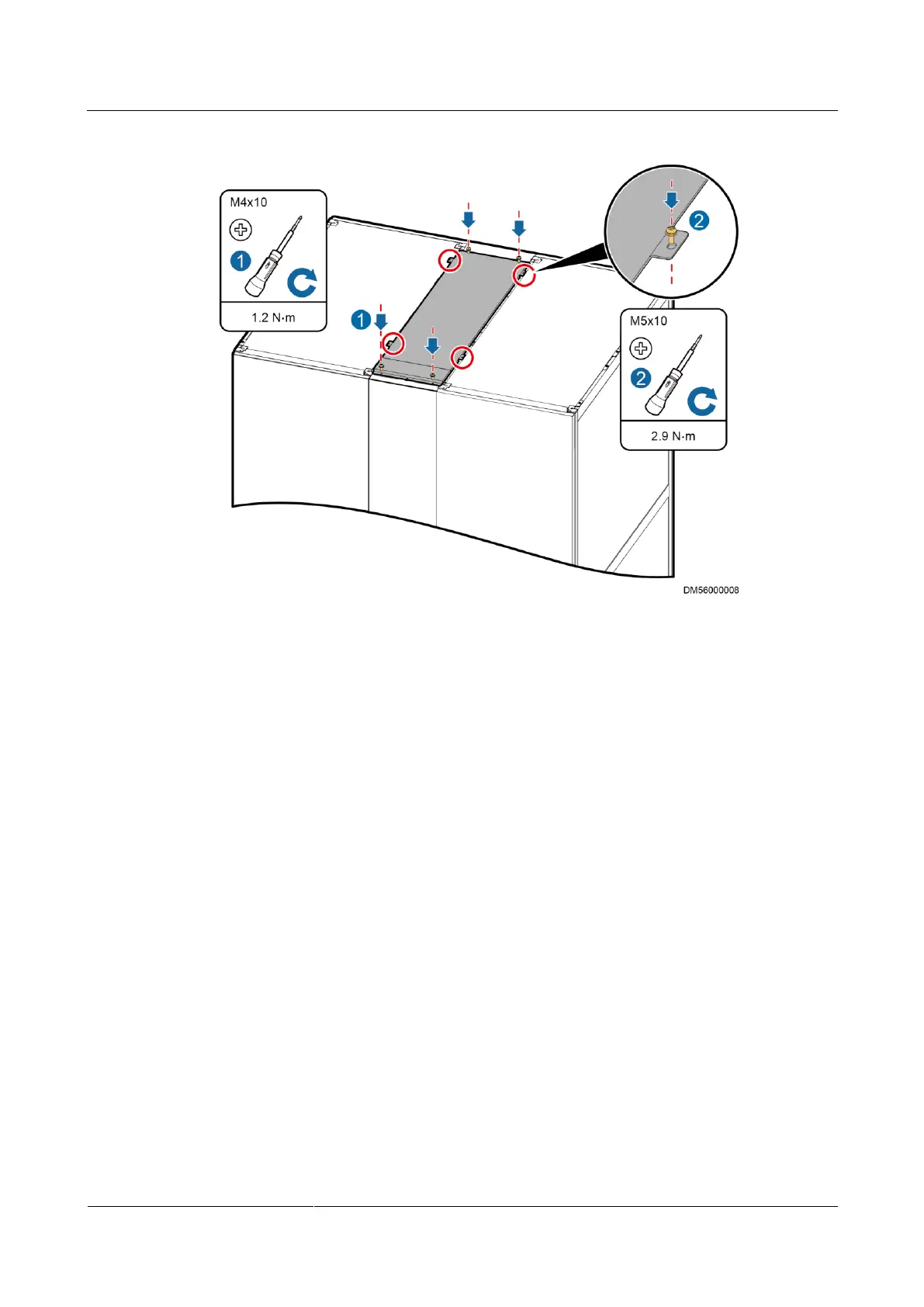

Figure 7-7 Securing a top panel
Step 6 Use four M5x10 tapping screws to secure the top panel to the adjacent cabinets, as shown by
(2) in Figure 7-7.
----End
7.1.4 (Optional) Installing a Top Frame for an Adaptive Frame
Preparations
Tool: Phillips screwdriver
Material: top frame for an adaptive frame
Procedure
Step 1 Place the top frame and ensure that the side with FRONT faces upwards toward the front of
the adaptive frame.
Step 2 Use screw assemblies to secure the top frame to the adaptive frame.
