Huawei FusionModule2000 User Manual

FusionModule2000 Smart Modular Data Center
Installation Guide
16 (Optional) Installing In-Room Access Control
Devices and Cameras
Issue 02 (2018-03-31)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
246

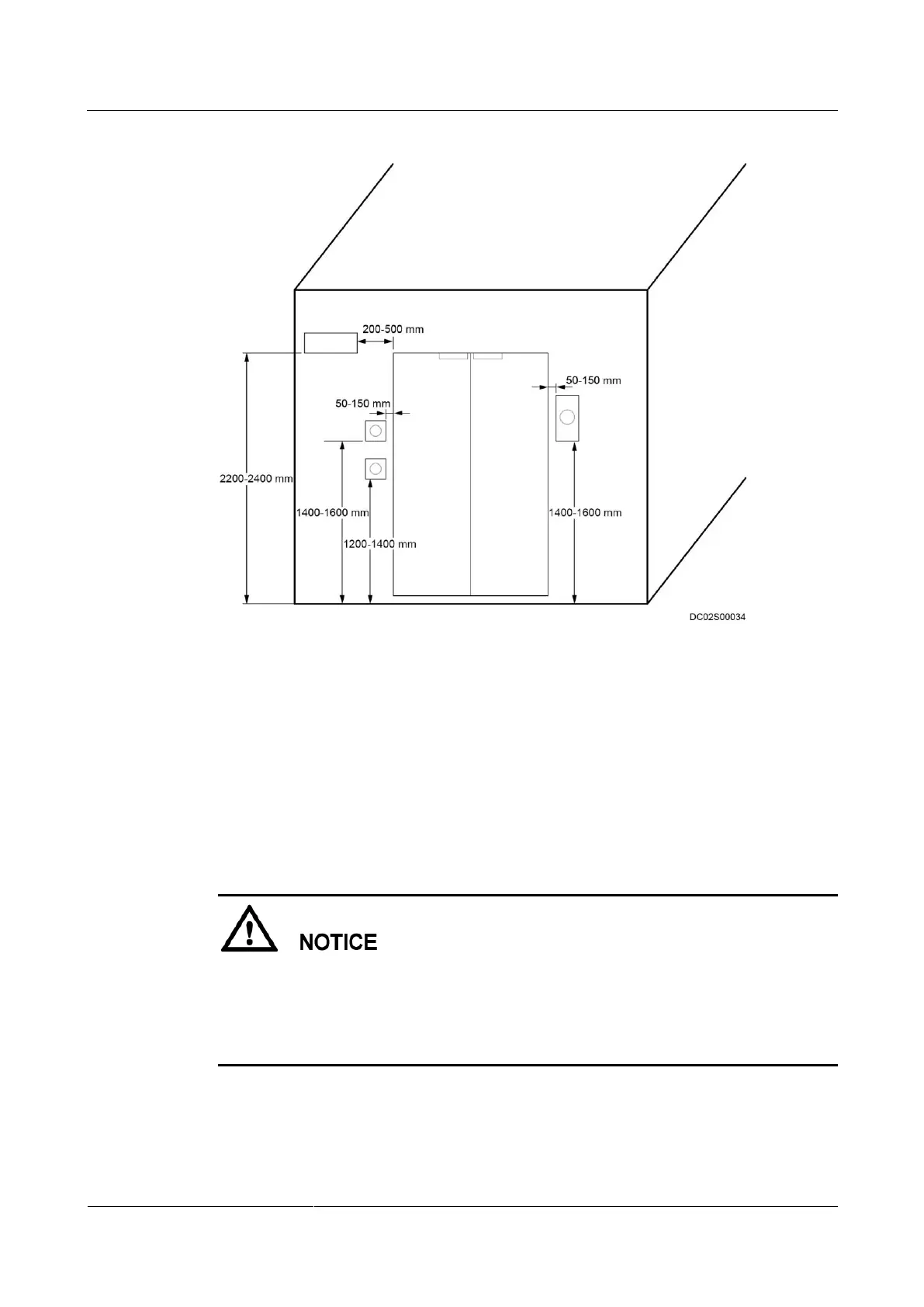

Figure 16-2 Layout
16.2 (Optional) Installing an In-Room Access Actuator
Context

The BOM number of an access actuator is 52271874.

It is recommended that the access actuator be installed 0.5 m away from the door edge
and 2.2 m above the floor at the inner side of a door.

The communication distance (network cable length) between the access actuator and the
access control device should not exceed 5 m. If the distance exceeds 5 m, prepare the cable
onsite.

Before installing the access actuator, install a cable trough or drill a cable hole in the wall,
and route the lead into the trough or hole.
Procedure
Step 1 Take out the waterproof box and remove its cover.
