Move the adjustable feet of the air conditioner base to the cabinet front (close to the front
door of the cabinet).

Move the adjustable feet of the PDC base to the cabinet rear (close to the rear door of the
cabinet).
Step 3 Secure the adjustable feet using the four M6 screws removed before.

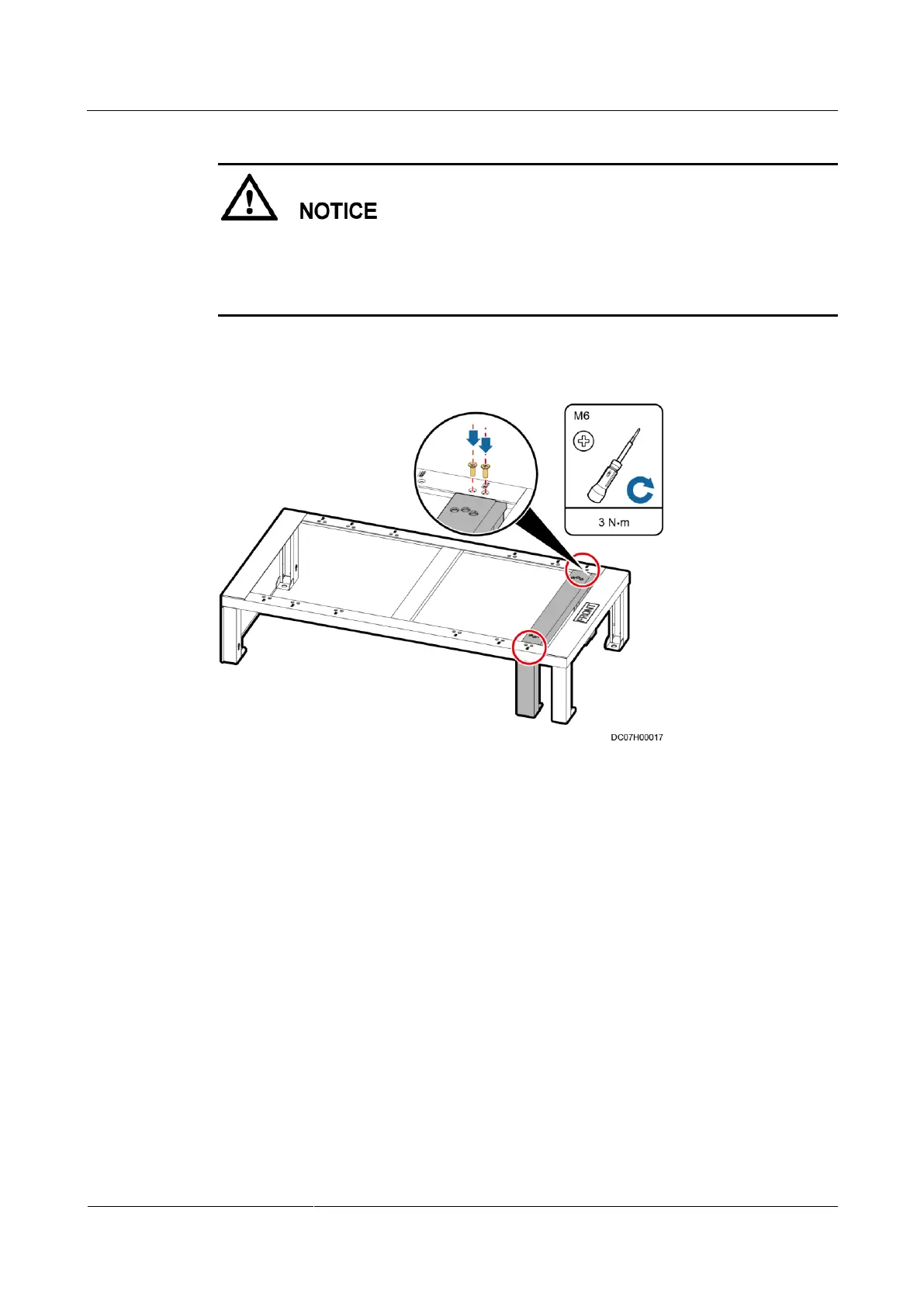

Figure 4-15 Securing adjustable feet
----End
4.3.3 Installing Bases with Fixed Dimensions
Prerequisites
Adjustable feet of bases have been adjusted.
Preparations
Tools: marker, socket wrench, torque wrench, hammer drill, φ16 drill bit, level
Materials: base, expansion bolt, washer
Document: base installation position diagram
