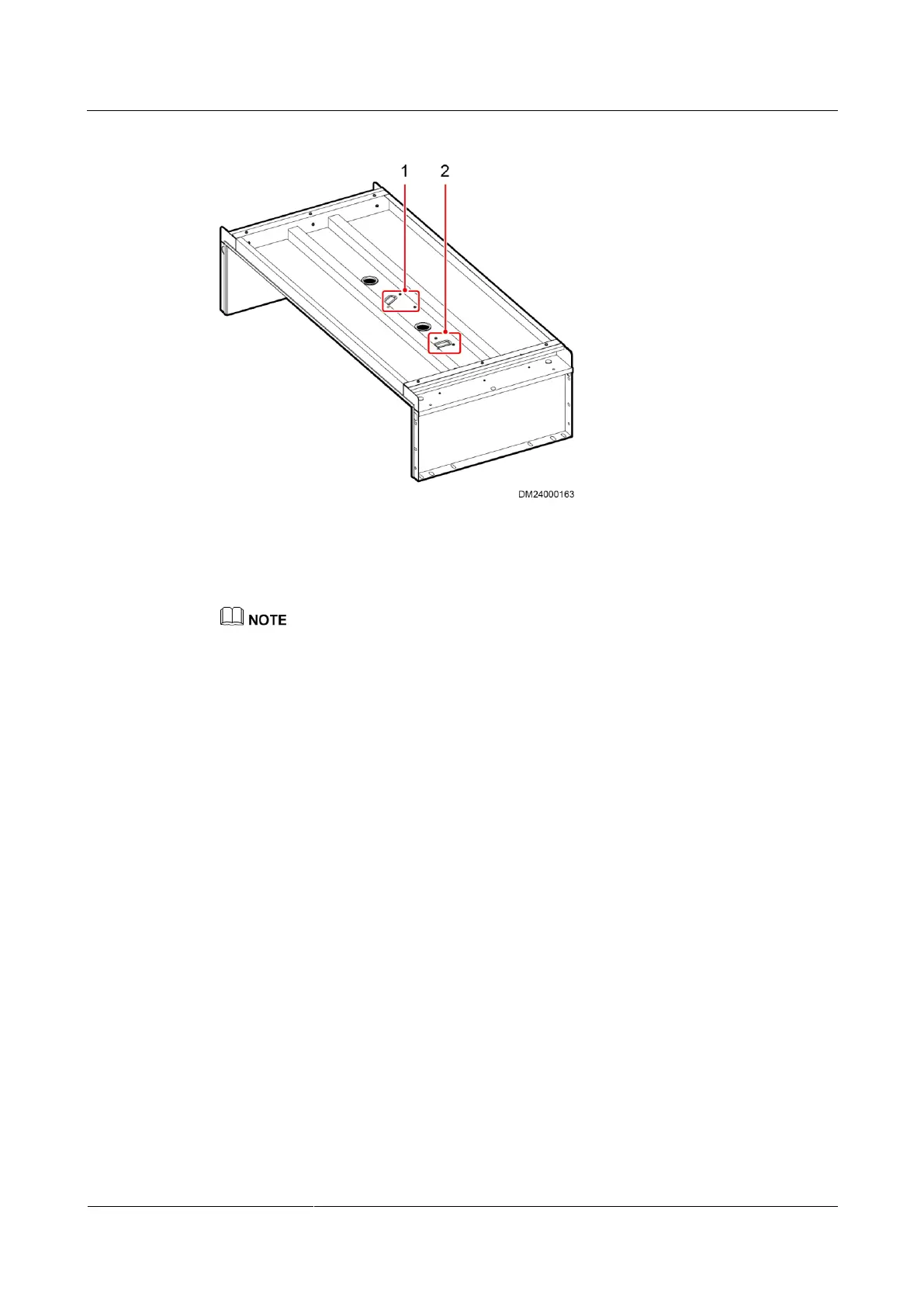

Figure 15-20 Control skylight
(1) Camera mounting
hole
(2) Mounting hole for the multi-functional sensor or smoke
detector

After monitoring devices are installed on the control skylight and cables are routed, attach a piece of
sponge to each of the two monitoring device mounting holes outside the top of the control skylight
to block the holes.

If no monitoring device is installed on the control skylight, attach sponge to the mounting holes
outside the top of the control skylight to block the holes.

Obtain black sponge from the fitting bag for the control skylight.
15.3.1 Installing a Rotating Skylight Magnetic Lock
Context
The BOM number of a rotating skylight magnetic lock is 02070262.
Preparations
Tool: Phillips screwdriver
Material: magnetic lock
Procedure
Step 1 Remove the four M4x12 screws from the magnetic lock holder and set them aside. Then take
off the holder from the rotating skylight.
