15.4.9.1 (Optional) Installing a Fingerprint and Card Reader
Context
The BOM number of a fingerprint and card reader is 02070173.
Preparations
Tool: Phillips screwdriver
Materials: fingerprint and card reader and accessories
Procedure
Step 1 Remove the baffle plate from the installation position, as shown by (1) in Figure 15-49.

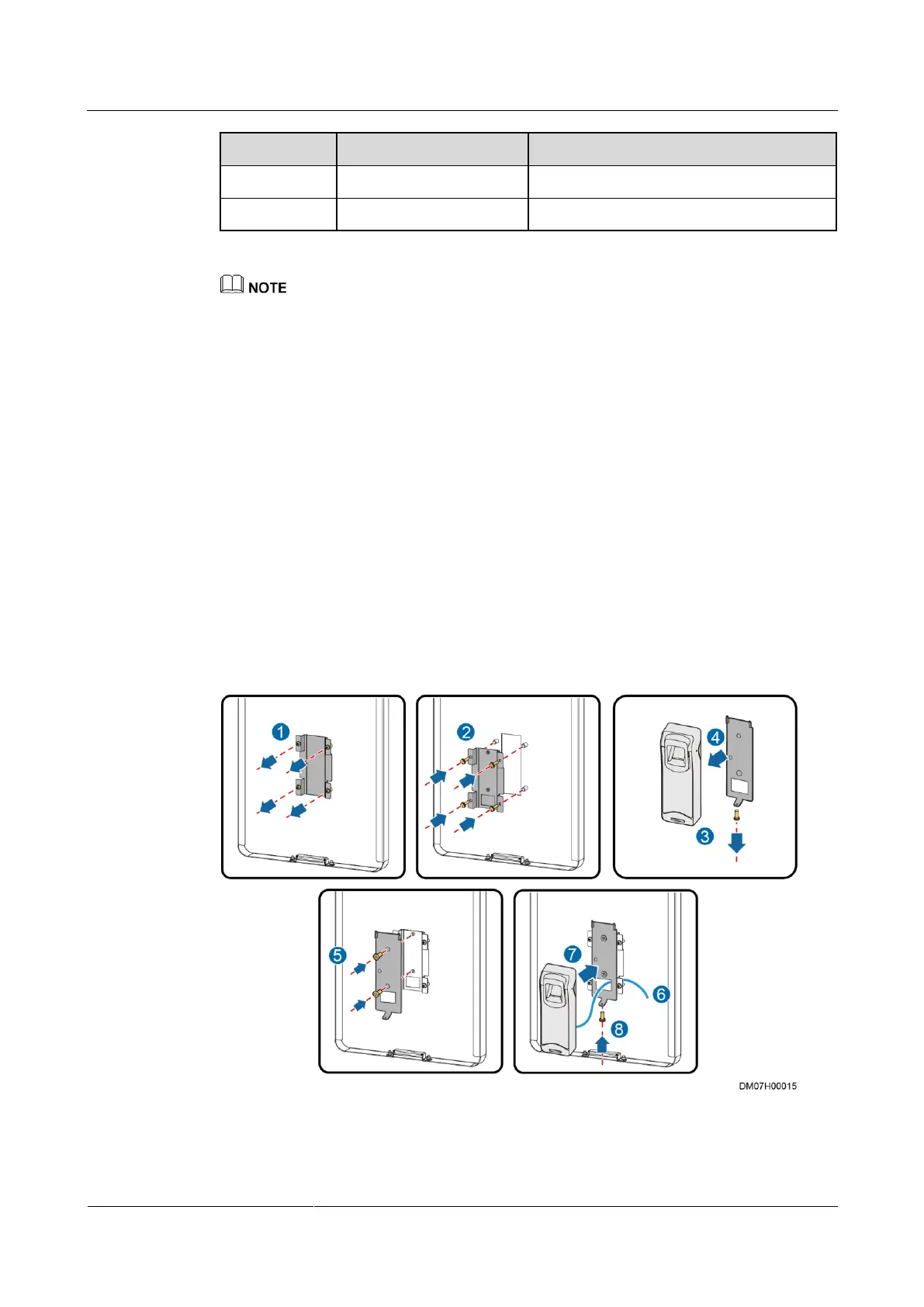

Figure 15-49 Installing a fingerprint and card reader
Step 2 Secure the baffle plate with a cable hole on the lower part to the pad mounting kit, as shown
by (2) in Figure 15-49.
