FusionModule2000 Smart Modular Data Center
Installation Guide
16 (Optional) Installing In-Room Access Control
Devices and Cameras
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

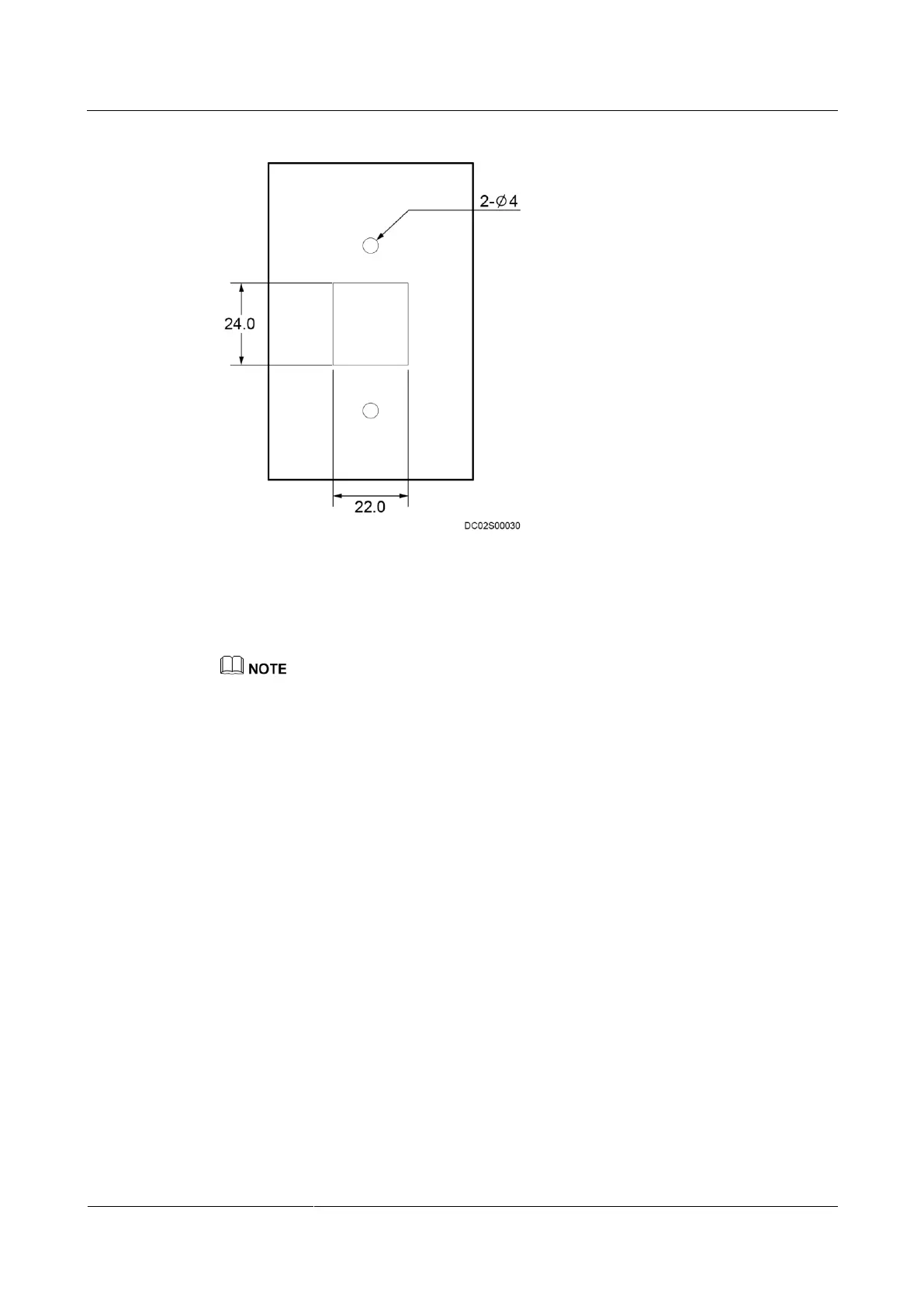

Figure 16-24 Marking mounting holes (unit: mm)
Step 3 Install the baseplate, as shown by (3) in Figure 16-23.
Step 4 Route the cable of the card reader with a keypad through the cable hole in the baseplate, as
shown by (4) in Figure 16-23.
The card reader with a keypad is connected to the access actuator by a network cable.
Step 5 Check that cables are correctly connected.
Step 6 Secure the card reader with a keypad to the baseplate, as shown by (5) and (6) in Figure
16-23.
----End
16.8 (Optional) Installing an In-Room Exit Button
Context
The BOM number of an exit button is 52220135.
Procedure
Step 1 Remove the exit button cover using a flat-head screwdriver.
Step 2 Remove screws from the exit button, remove the base, and mark mounting holes using the
base and a marker.
Step 3 Drill holes and install the exit button base.
