FusionModule2000 Smart Modular Data Center

Installation Guide

17 Connecting Cables

Issue 02 (2018-03-31)

Huawei Proprietary and Confidential

290

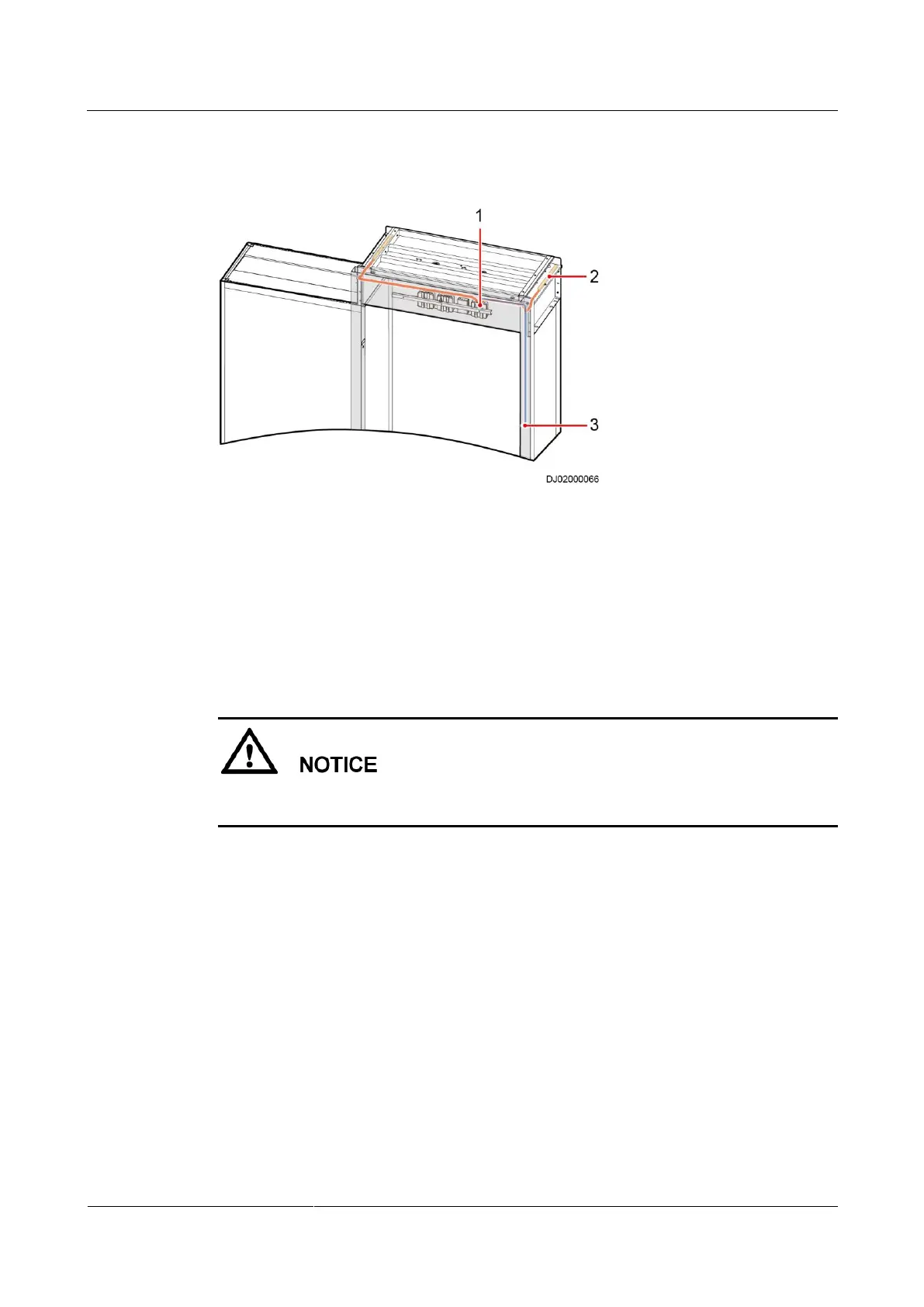

Figure 17-33 Cable routes for the aisle lighting system (single-row scenario)

(1) AC actuator

(2) Light

(3) Light button

17.12 (Optional) Connecting Cables for the In-Room

Access Control and Camera System

The cables for the access control system are weak-current cables, which should be routed

through a tube and kept at least 20 mm away from strong-current cables.
