4 (Optional) Installing Bases
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Step 12 Connect bases using connecting plates, as shown by (1) in Figure 4-9.

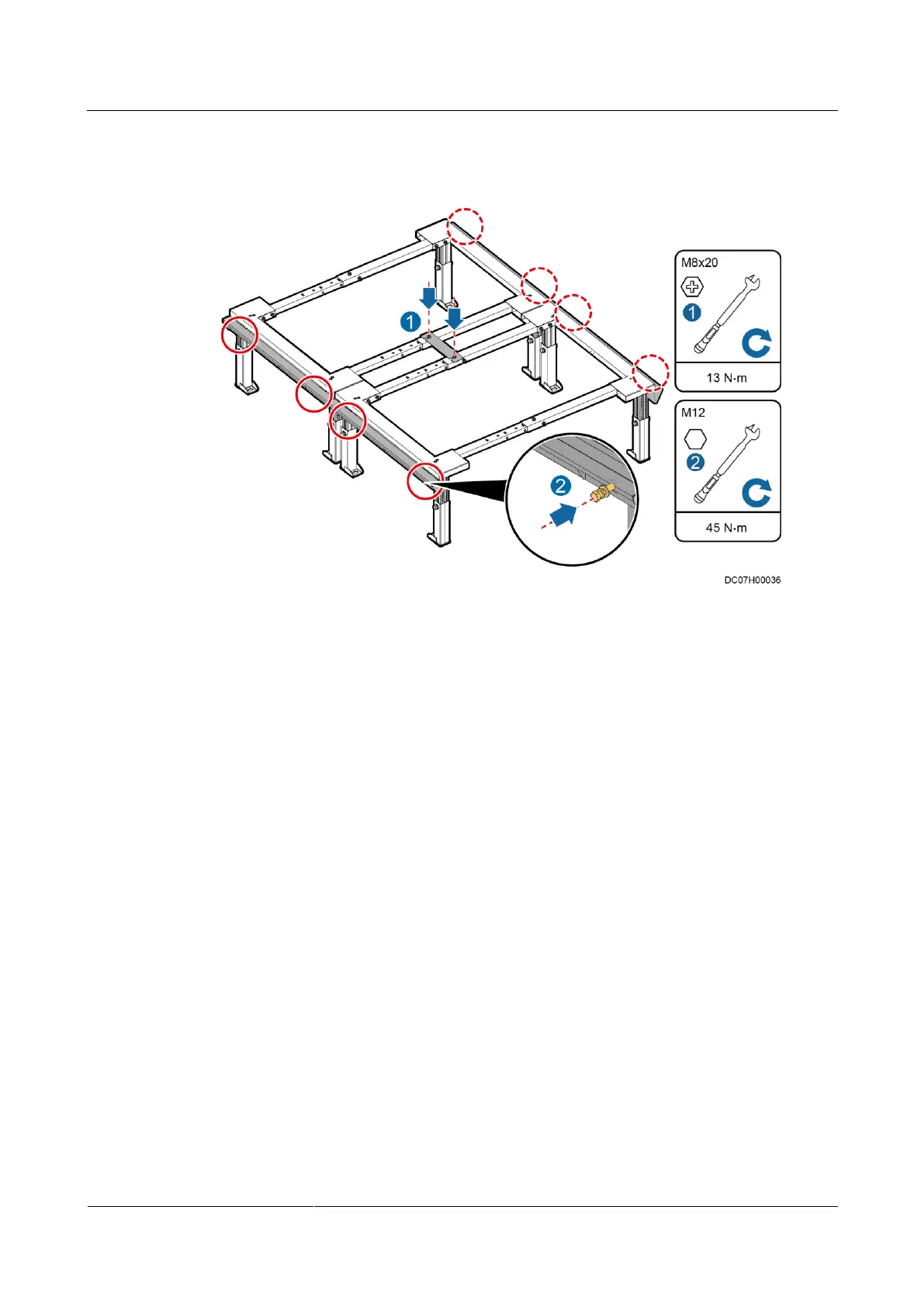

Figure 4-9 Connecting bases
Step 13 Screw the floor holder to the base, as shown by (2) in Figure 4-9.
----End
Follow-up Procedure
Check the installation and ensure that adjacent bases are in close contact with each other and
the gap is even.
4.3 Installing Bases with Fixed Dimensions
4.3.1 (Optional) Adjusting Adjustable Feet of Air Conditioner
Bases (300 mm Wide)
Context
A 300 mm wide air conditioner base is used for a 300 mm wide air conditioner. The BOM
number is 21152146.
