FusionModule2000 Smart Modular Data Center
Installation Guide
15 Installing Monitoring Devices
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

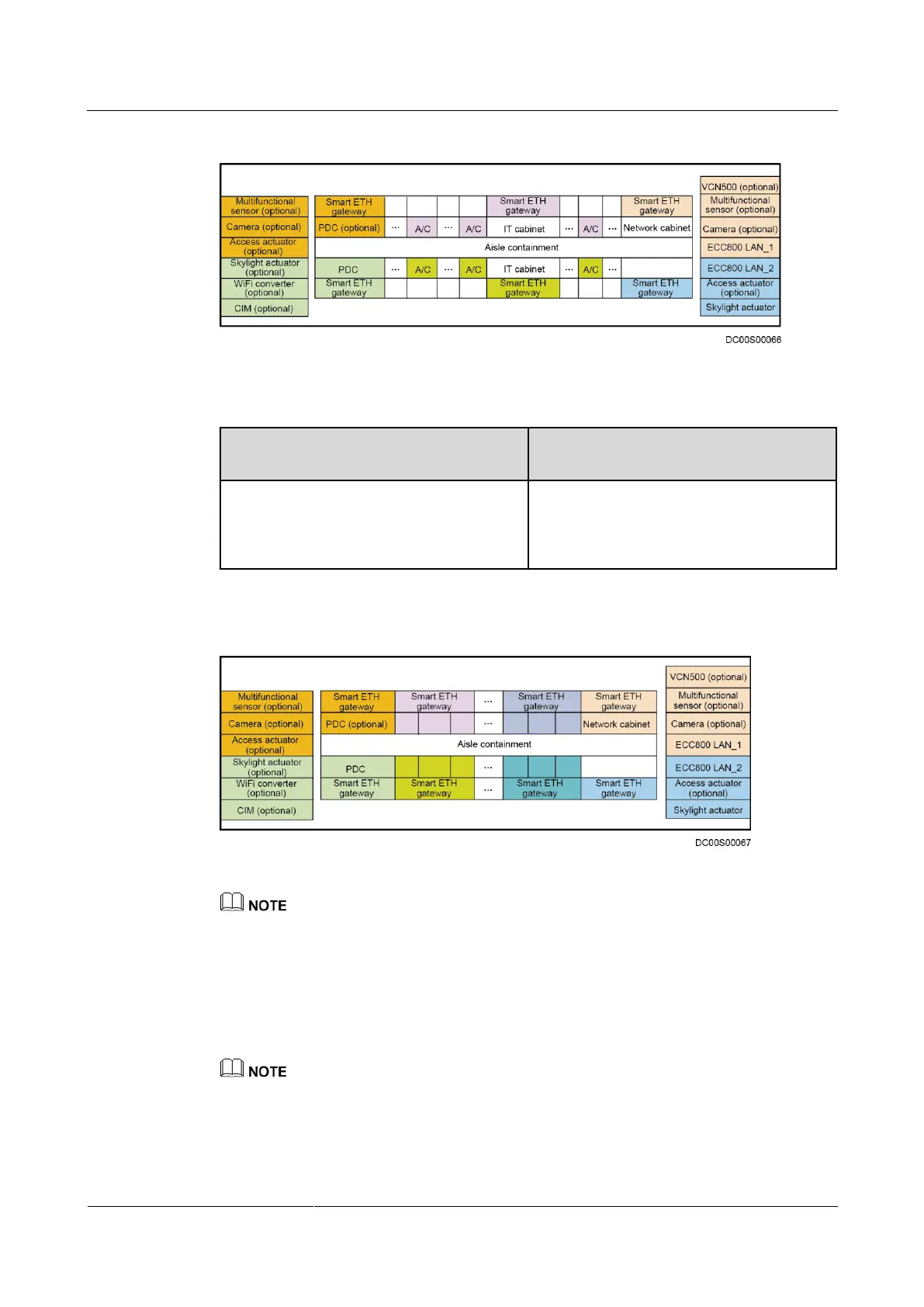

Figure 15-65 Layout of smart ETH gateways in scenario 2
Table 15-6 Scenario 3
Rules for Deploying Smart ETH
Gateways
Rack environment unit deployed
Deploy one smart ETH gateway for each
end cabinet and one smart ETH gateway for
every three cabinets among other cabinets in
the smart module, as shown in Figure 15-66.
Figure 15-66 Layout of smart ETH gateways in scenario 3
When the smart module is 4 meters long or less, no multi-functional sensor is deployed in the
network cabinet.
When the smart module is longer than 7 meters, deploy one multi-functional sensor in the middle of
the micro-module aisle (one more control skylight is deployed). The multi-functional sensor can be
connected to any smart ETH gateway in the middle.
15.5.2 Layout of Smart ETH Gateways (Single-Row Scenario)
Components marked in the same background color should be connected to the same smart ETH
gateway.
