Table 15-7 Scenario 1
Scenario
Rules for Deploying Smart ETH
Gateways

No rack environment unit deployed

Module length ≤ 7 m; number of air
conditioners ≤ 4
Deploy two smart ETH gateways for each
end cabinet in the smart module, not for
other cabinets. A total of four smart ETH
gateways should be deployed, as shown in
Figure 15-67.

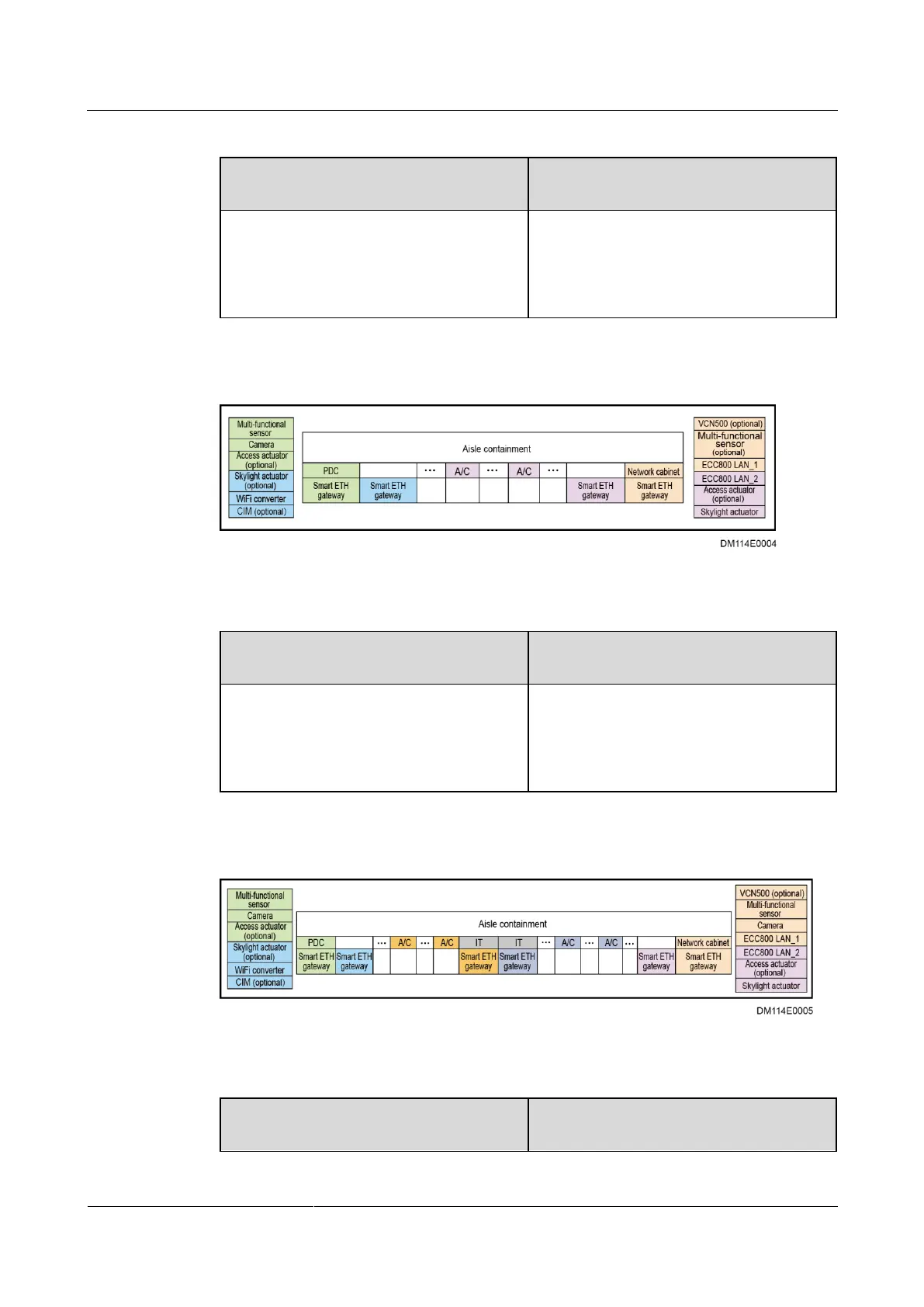

Figure 15-67 Layout of smart ETH gateways in scenario 1
Table 15-8 Scenario 2
Scenario
Rules for Deploying Smart ETH
Gateways

No rack environment unit deployed

Module length > 7 m; number of air
conditioners > 4
Deploy two smart ETH gateways for each
end cabinet and IT cabinet in the middle in
the smart module, not for other cabinets. A
total of six smart ETH gateways should be
deployed, as shown in Figure 15-68.
Figure 15-68 Layout of smart ETH gateways in scenario 2
Table 15-9 Scenario 3
Scenario
Rules for Deploying Smart ETH
Gateways
