FusionModule2000 Smart Modular Data Center
Installation Guide
15 Installing Monitoring Devices
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Rules for Deploying Smart ETH
Gateways
Rack environment unit deployed
Deploy two smart ETH gateways for each
end cabinet and one smart ETH gateway for
every three cabinets among other cabinets in
the smart module, as shown in Figure 15-69.

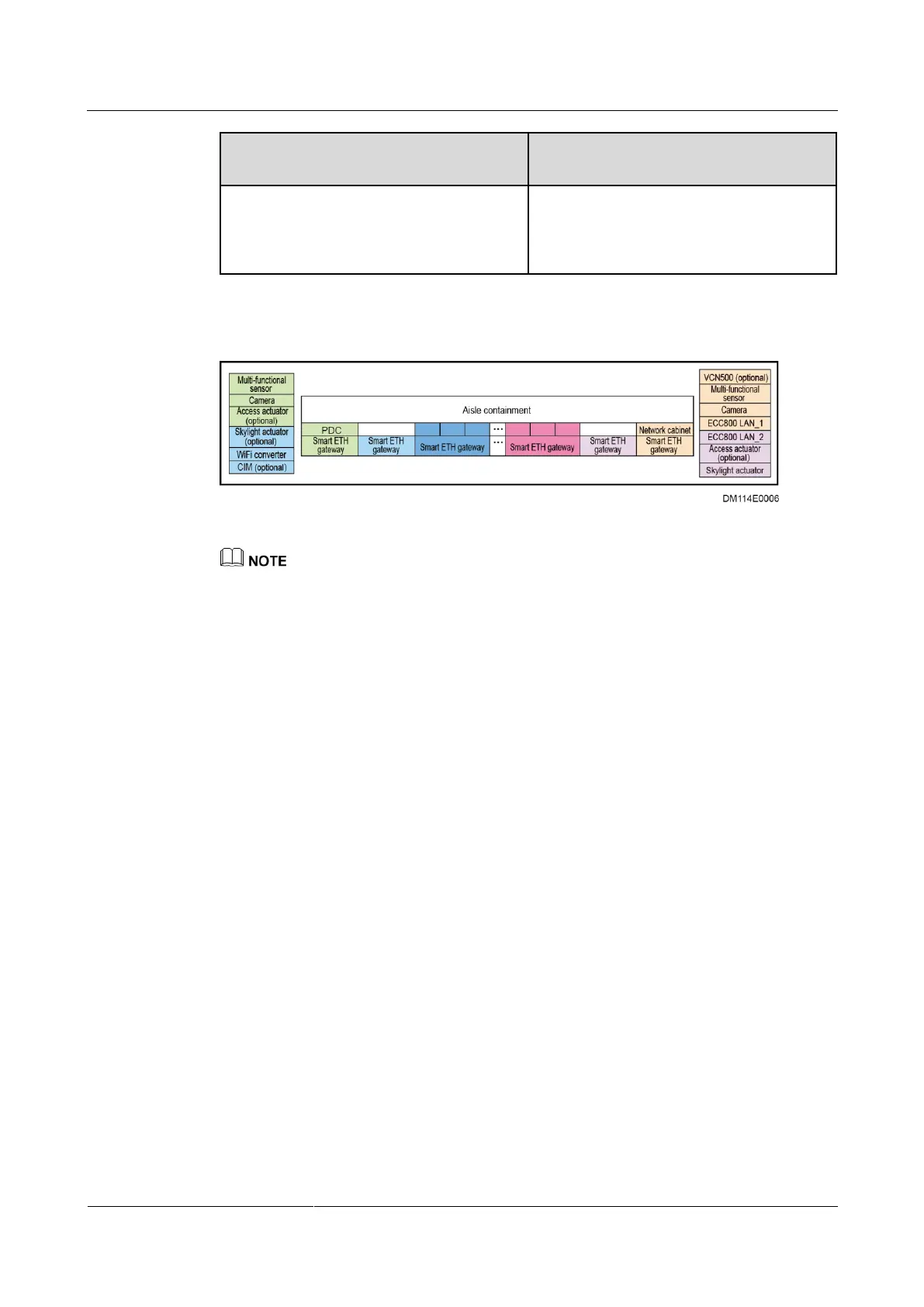

Figure 15-69 Layout of smart ETH gateways in scenario 3
When the smart module is 4 meters long or less, no multi-functional sensor is deployed in the
network cabinet.
When the smart module is longer than 7 meters, deploy one multi-functional sensor in the module
aisle (one more control skylight is required). Connect the multi-functional sensor to any smart ETH
gateway in the middle.
15.5.3 Installing a Smart ETH Gateway
Preparations
Tool: Phillips screwdriver
Materials: smart ETH gateway and accessories
Procedure
Step 1 Use two M4x10 screw assemblies to secure the guide rail for the smart ETH gateway to the
cable trough, as shown in Figure 15-70.
