FusionModule2000 Smart Modular Data Center

Installation Guide

10 Installing the Aisle Containment

Issue 02 (2018-03-31)

Huawei Proprietary and Confidential

148

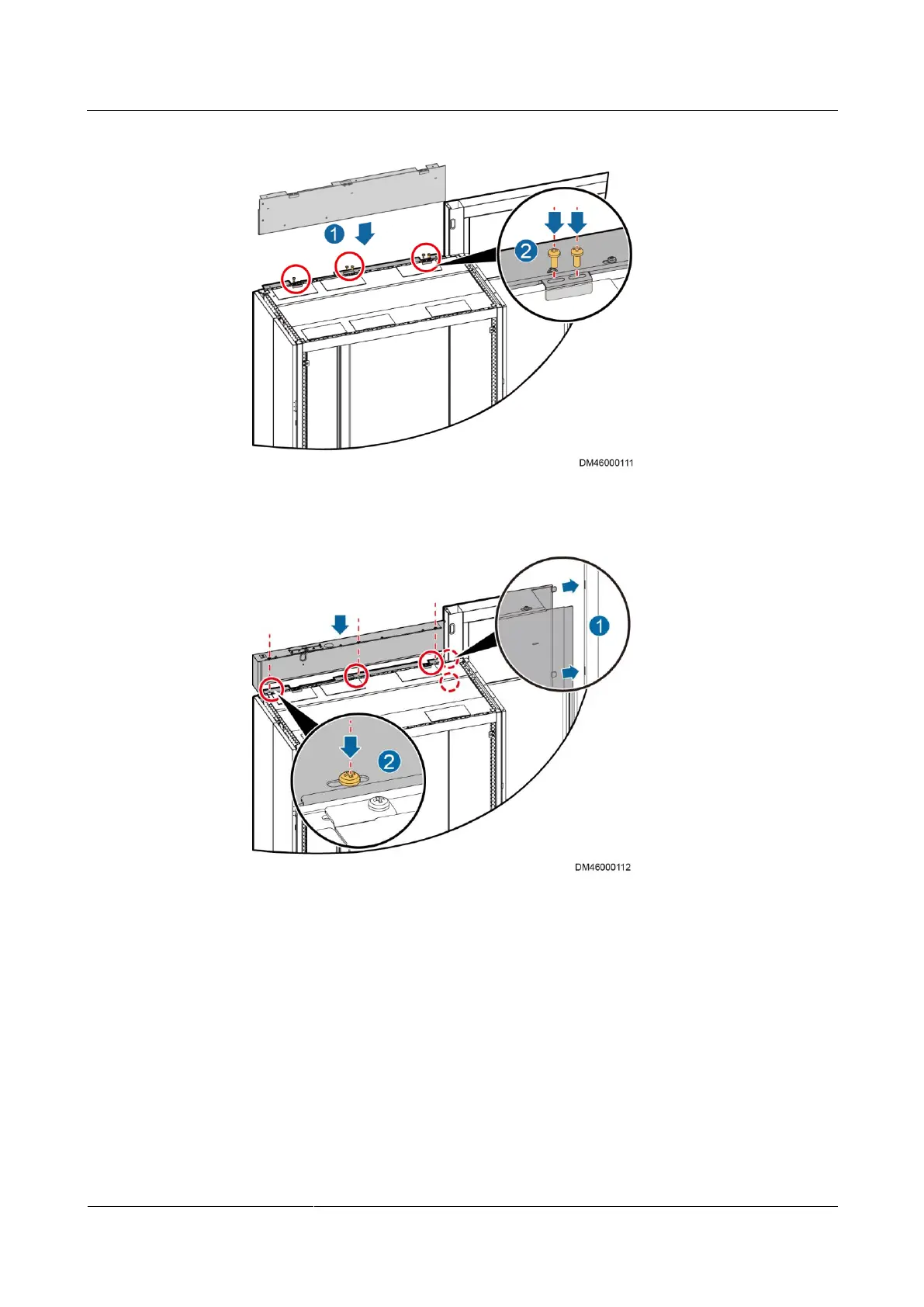

Figure 10-60 Placing a door box

Figure 10-61 Installing the door box

----End

10.6 Attaching Cabinet Labels

Prerequisites

Skylights and end doors are secured.

Context

Cabinet labels are useful for subsequent cable connections.
