Huawei FusionModule2000 User Manual

FusionModule2000 Smart Modular Data Center
Installation Guide
2 Installation Preparations
Issue 02 (2018-03-31)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
19

The floor plan and exterior diagrams only indicate the relative positions of components.
For the detailed installation position, see the engineering layout diagram and actual
objects.

The PDC in smart module A is an integrated UPS, with batteries deployed inside the aisle
containment.

The PDC in smart module B is an integrated PDC or precision PDC, with batteries and
UPS deployed outside the aisle containment.

The PDC in smart module A (with batteries deployed outside) is an integrated UPS, with
batteries deployed outside the aisle containment.

It is recommended that two air conditioners with the heating and humidification functions
be installed for the standard configuration. In the dual-row aisle containment, the two air
conditioners should be placed at both ends of the aisle. If more than two air conditioners
with the heating and humidification functions are to be configured, distribute them evenly
in the aisle depending on the actual condition.
2.8.1 Power Supply and Distribution Cabinet Scenario
(Dual-Row)

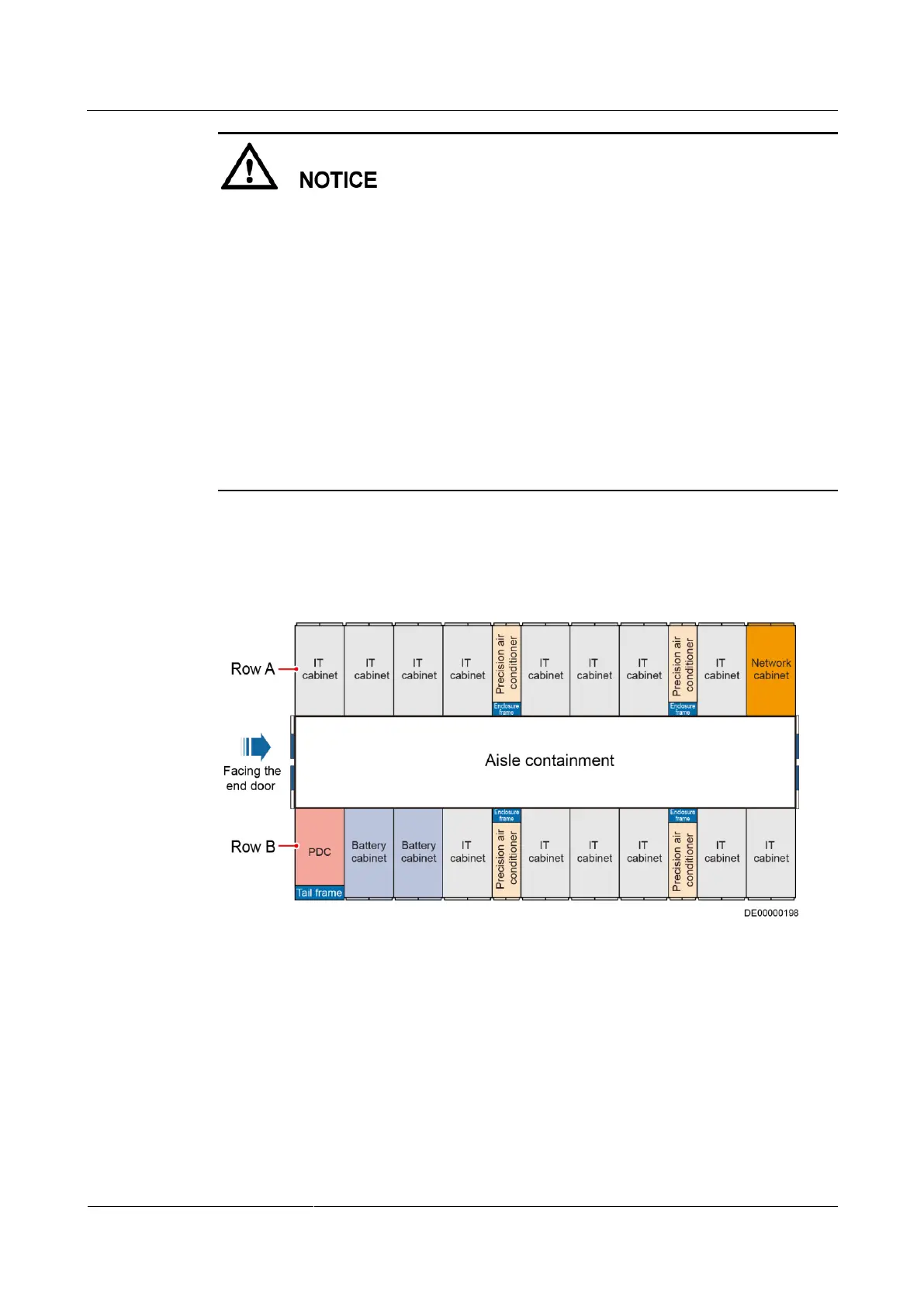

Figure 2-5 Floor plan of the dual-row aisle containment
