FusionModule2000 Smart Modular Data Center
Installation Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

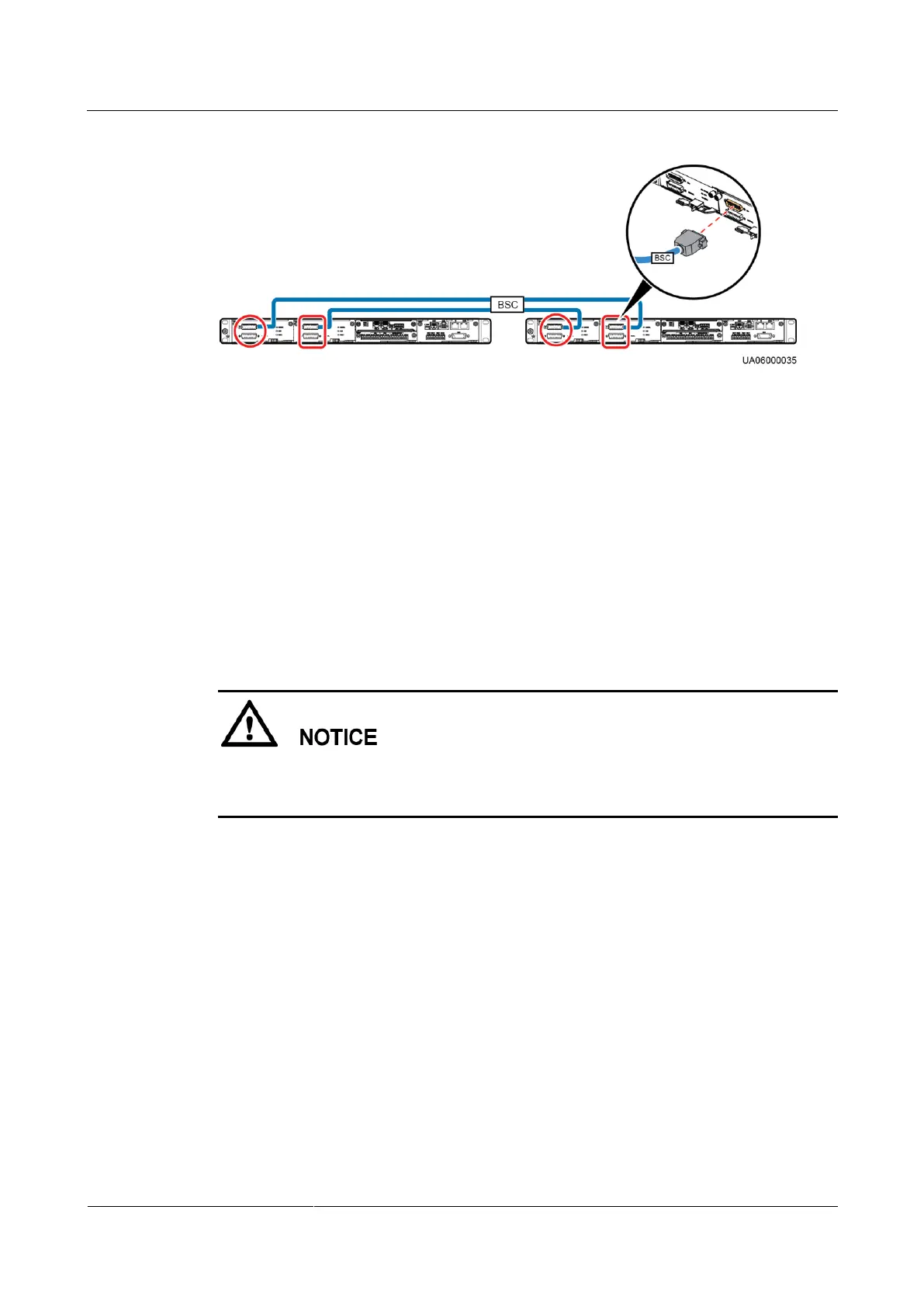

Figure 17-14 Connecting BSC cables (2N scenario)
17.8.2 Connecting Battery Cables
Precautions for Connecting Battery Cables
For details about how to connect battery cables, see the battery cable connection diagram
delivered with the cables.
Battery trays consist of supports and trays, with space reserved between supports and
trays on adjacent layers for operation before battery cabinets are delivered. To remove
the battery trays, perform the following operations:
a. Remove the battery trays from top to bottom.
b. Install batteries and connect cables from bottom to top.
When installing batteries, install battery trays at first, and then place batteries onto the trays
and connect cables. Do not move all the batteries into the cabinet after placing them on the
trays and connecting cables.
When placing batteries, install separators between adjacent batteries, as shown in Figure
17-15. If the battery capacity is 65 Ah or more, there is no need to install a separator in
the depth direction of the battery cabinet. After placing the batteries, attach the battery
labels on the middle position at the battery top from positive terminals in sequence based
on the wiring diagram, as shown in Figure 17-16.
