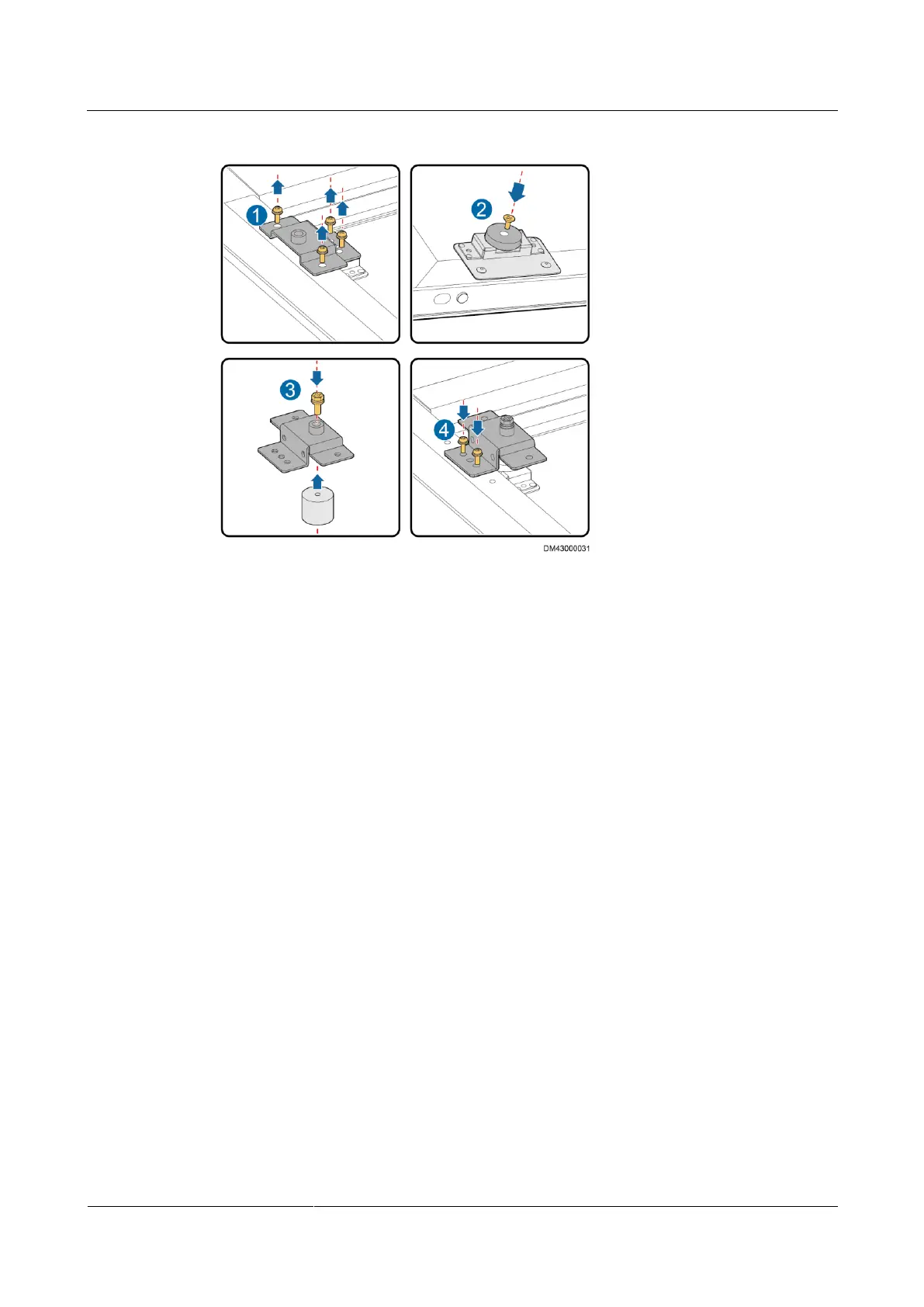

Figure 15-21 Installing a skylight magnetic lock
Step 2 Secure the magnet of the magnetic lock to the magnet holder using one M4x10 countersunk
screw.
Step 3 Secure the magnetic lock to the magnetic lock holder using one M6x16 screw.
Step 4 Secure the magnetic lock holder to the rotating skylight using two M4x12 screws.
----End
15.3.2 Installing a Camera
Prerequisites
Control skylights have been installed.
Context
The camera needs to be installed on a control skylight.
Preparations
Tool: Phillips screwdriver
Materials: SD card, camera
Procedure
Step 1 Install an SD card.
To Next Page
