FusionModule2000 Smart Modular Data Center
Installation Guide
15 Installing Monitoring Devices
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1. Loosen the screws on the front cover of the camera, remove the front cover, and take out
the inner cover clipped on the lens.

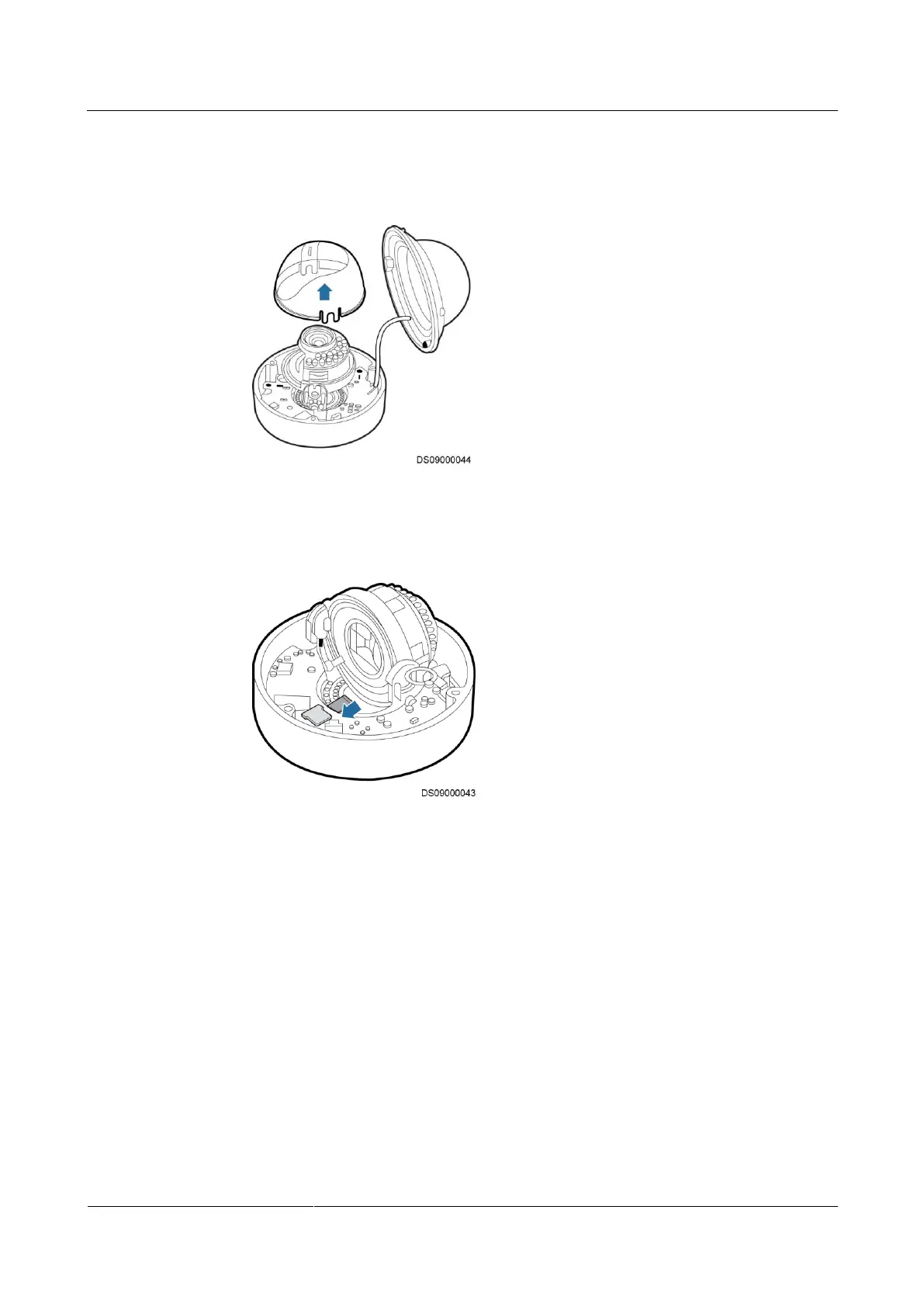

Figure 15-22 Removing the front and inner covers
2. Gently insert the SD card into the SD card slot.
Figure 15-23 Installing an SD card
Step 2 Route the camera cable through the control skylight.
Step 3 Align the holes in the camera base with the holes in the control skylight, and use three M3
screws to secure the camera to the control skylight.
