FusionModule2000 Smart Modular Data Center
Installation Guide
15 Installing Monitoring Devices
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
----End
15.4.9.6 Installing a Pad
Context
The BOM number of a pad is 01091655. The BOM number of the pad mounting bracket is
21203286.
Preparations
Tool: Phillips screwdriver
Materials: pad mounting bracket, pad
Procedure
Step 1 (Optional) If the feet in the lower part of the pad mounting bracket are not as wide as the pad,
adjust the feet, as shown in Figure 15-58.
1. Loosen the M4x12 screws on the foot (do not remove it), as shown by (1) in Figure
15-58.
2. Adjust the foot symmetrically until it is as wide as the pad, as shown by (2) in Figure
15-58.
3. Tighten the M4x12 screws on the foot, as shown by (3) in Figure 15-58.

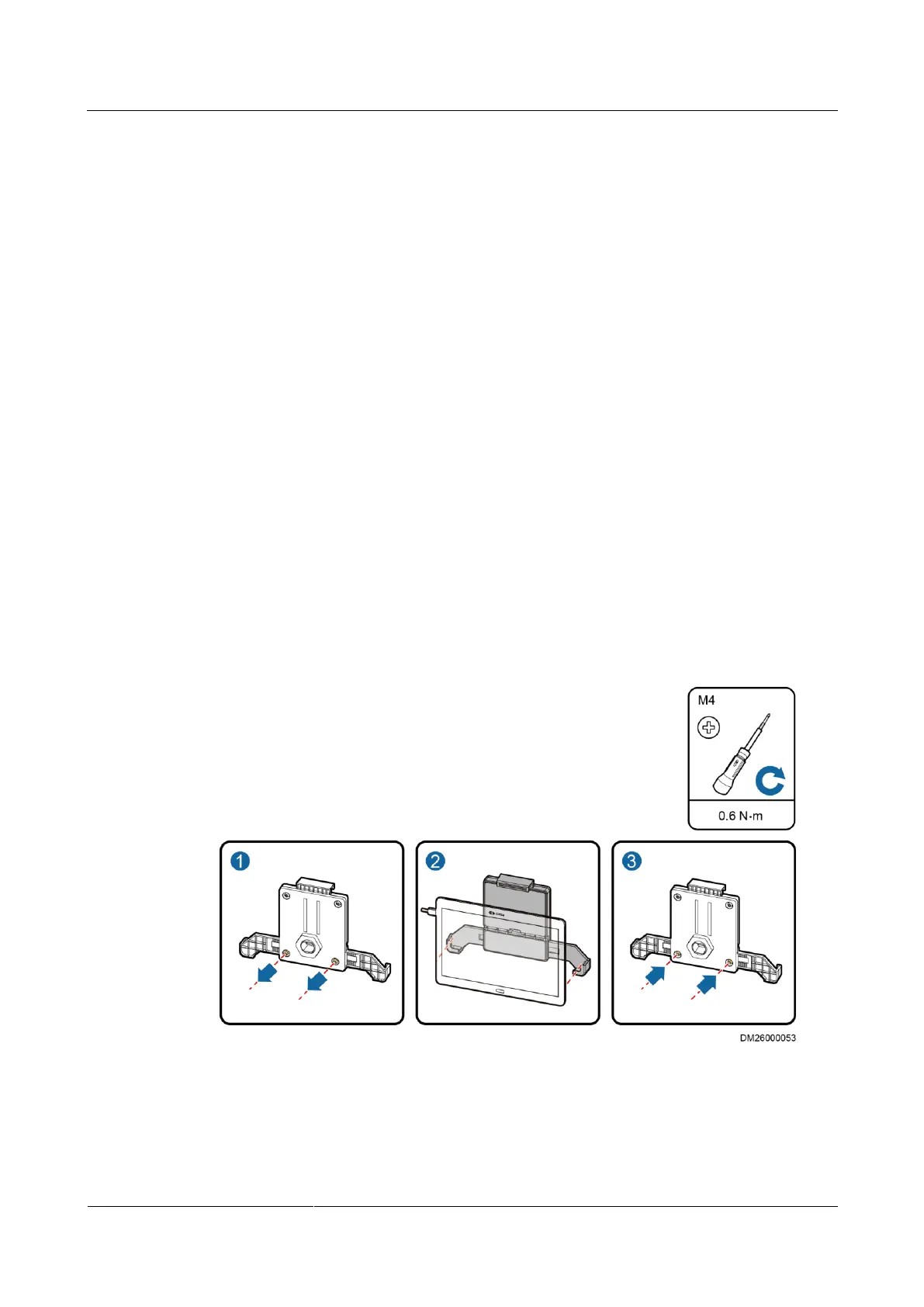

Figure 15-58 Adjusting the foot
Step 2 Remove the cable hole baffle plate from the pad mounting kit, as shown by (1) in Figure
15-59.
