If the hanging kit rubs against the fixing screws in the top panel of the cabinet, remove the
screws in the top panel, and secure the top panel and the hanging kit to the cabinet using
the screws.

Verify that each conversion bracket shown by (2) in Figure 10-37 is secured by at least one
screw.
3. Facing the aisle, mount the left and right door boxes respectively onto the left and right
hanging kits, verify that they are in close contact with the middle door box, and secure
them to the hanging kits using six M5x10 tapping screws, as shown by (3) in Figure
10-37.
----End
Follow-up Procedure

Adjust the inner rubber strip to ensure that the two glass doors are in close contact.

If the two glass doors do not align well because the end cabinets are not properly placed,
insert a spacer between the post and fixing position of the backward cabinet, as shown in
Figure 10-38.

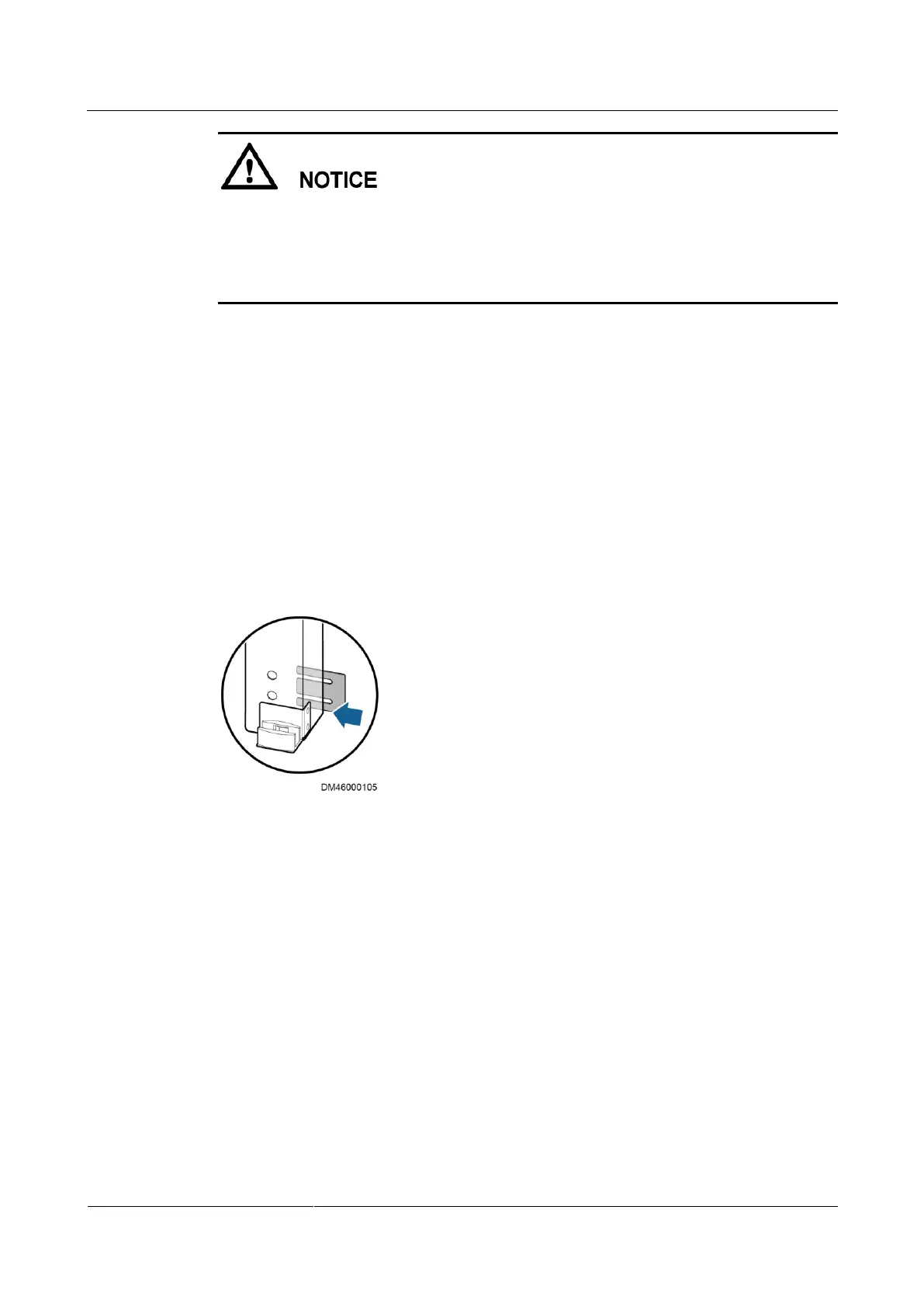

Figure 10-38 Inserting a spacer
10.5.3 Installing Revolving Doors (Single-Row and Dual-Row
2000 mm)
Preparations
Tools: adjustable wrench, torque wrench, Phillips screwdriver, socket wrench, step ladder, hex
key
Materials: revolving doors and accessories
Procedure
Step 1 Assemble the door frame.
