FusionModule2000 Smart Modular Data Center
Installation Guide
10 Installing the Aisle Containment
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

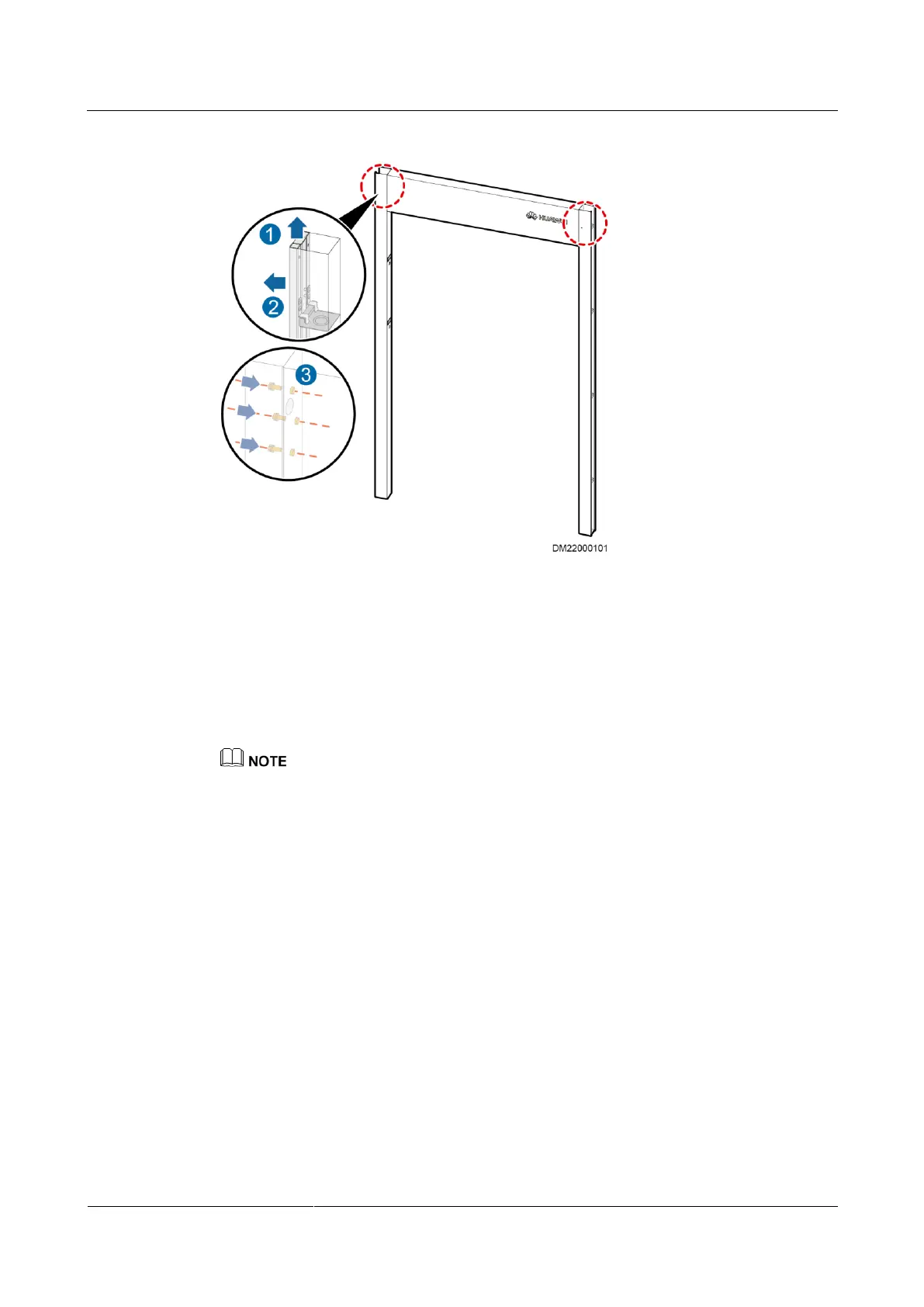

Figure 10-39 Assembling a door frame
1. Place the door posts and upper frame mounting kit on the floor, pull the post side plates
from the ends of the door posts, and remove the side plates, as shown by (1) and (2) in
Figure 10-39.
2. Assemble the door frame by connecting the two door posts and upper frame mounting kit
with six M6 screw assemblies, as shown by (3) in Figure 10-39.
3. After the assembly is complete, verify that the posts are flush with the upper frame
mounting kit.
Store the side plates you removed from the door frame.
Step 2 Install the door frame.
