FusionModule2000 Smart Modular Data Center
Installation Guide
10 Installing the Aisle Containment
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

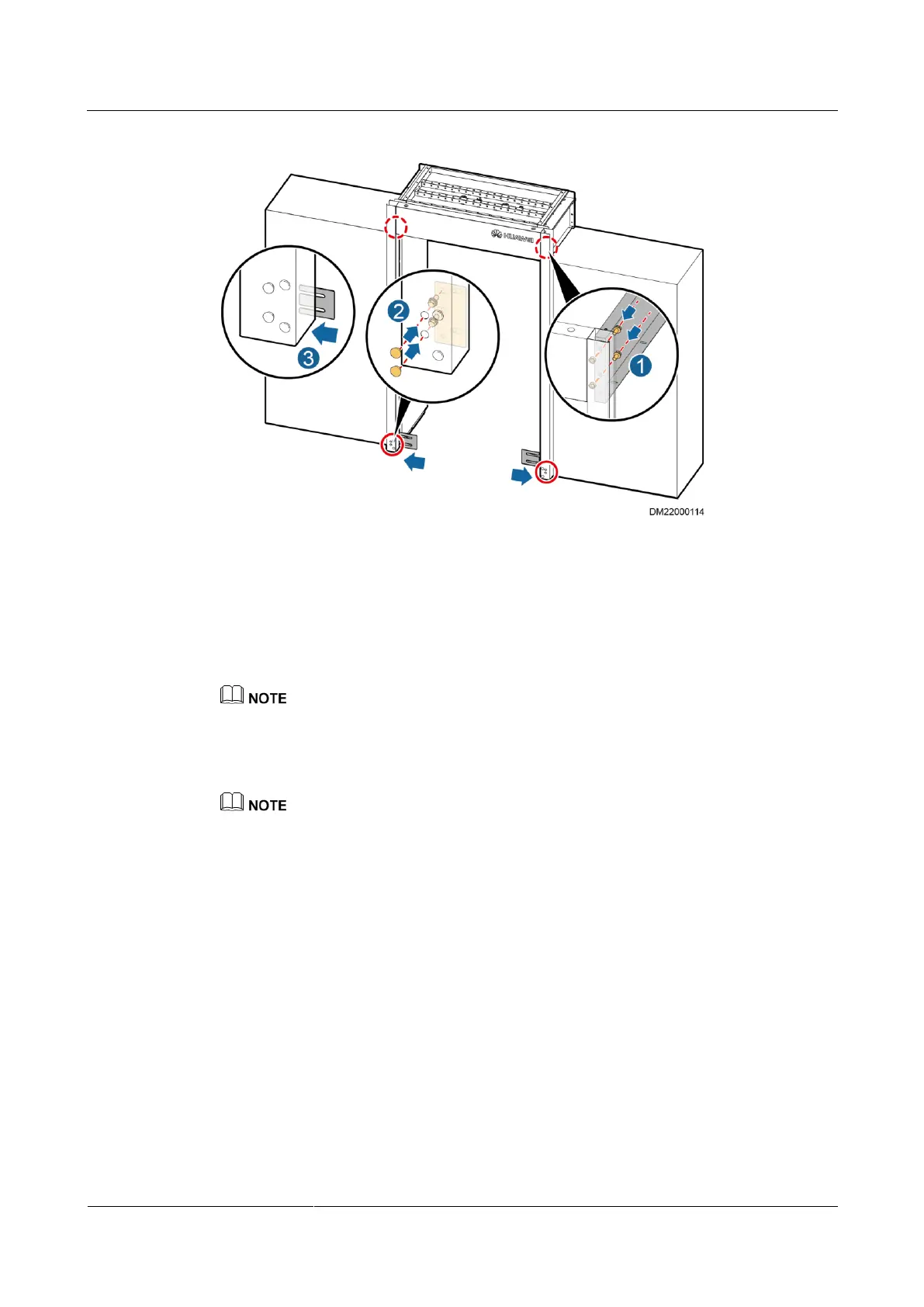

Figure 10-40 Installing a door frame
1. Partially secure (do not fully tighten the fasteners) left and right posts to the skylight
connective plates using four M6 screws, flat washers, and nuts (two at each side), as
shown by (1) in Figure 10-40.
2. Secure the bottom of one door post to the cabinet or enclosure frame using two M6
screws and square washers. The door posts on both sides require four screws, as shown
by (2) in Figure 10-40.
Verify that the posts are flush with the cabinet frame.
3. Tighten all screws on the door frame.
Step 3 Secure the door panels.
Before securing door panels, measure the door panel size. The door panels should be 2045 mm (±2 mm)
long and 600.5 mm (±2 mm) wide.
1. Stand the door panels and remove the four rubber strips from the two door panels.
