FusionModule2000 Smart Modular Data Center
Installation Guide
10 Installing the Aisle Containment
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

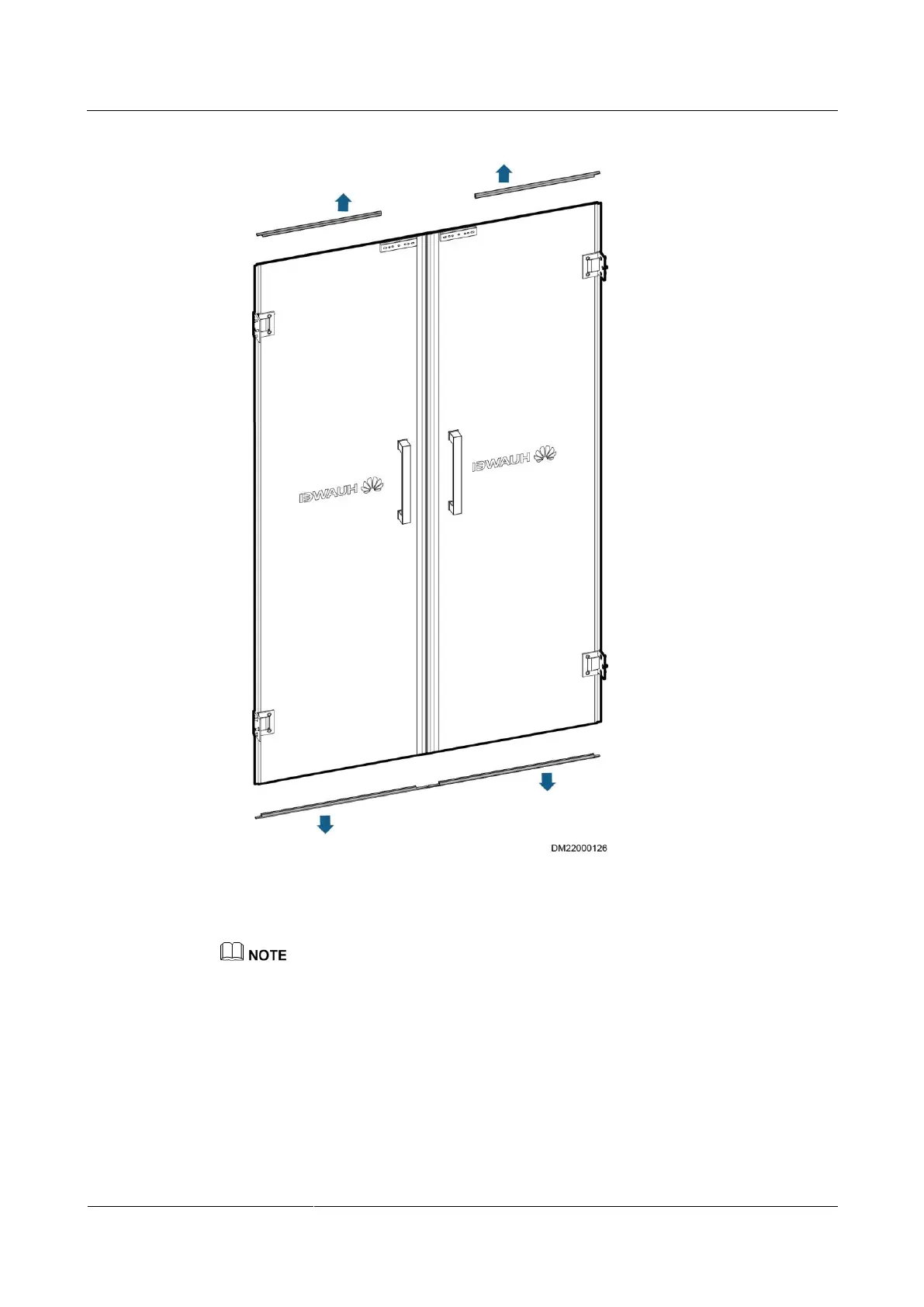

Figure 10-41 Removing rubber strips from door panels
2. Secure the door panels to the door posts using M6 countersunk hex socket screws for
each hinge.
Secure the hinges on the upper part and then those on the lower part. This facilitates hinge
adjustment.
After fixing the door hinges, install the rubber covers onto the screws.
To Next Page
