FusionModule2000 Smart Modular Data Center
Installation Guide
10 Installing the Aisle Containment
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

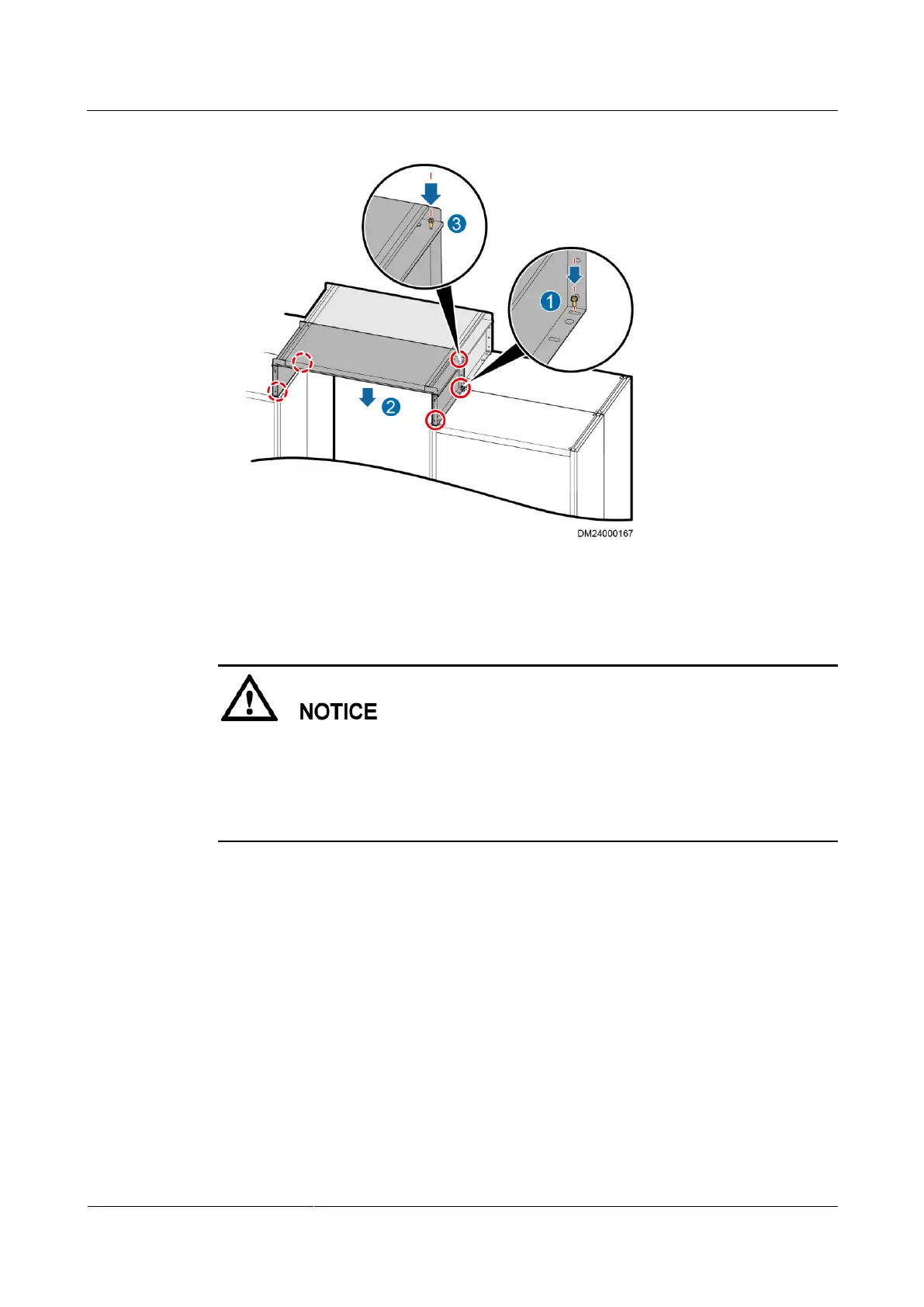

Figure 10-5 Securing a skylight
Step 3 Lift the skylight plate to the top of the aisle and use M6x16 screws to secure the skylight plate
to the skylight connective plates, as shown by (2) and (3) in Figure 10-5.
The number of M6x16 screws must be the same as the number of rivet nuts on the end
plane of the skylight connective plates.
When placing a flat or rotating skylight plate, put the part with a magnetic lock fixing base
on the cabinet side.
Place skylights based on the Keep direction label on a flat or rotating skylight.
Step 4 Install adjacent skylights in the same way.
Step 5 Keep the end planes of adjacent skylight connective plates flush with each other and connect
the adjacent skylight connective plates using two M6x16 screws with flat washers and nuts.
