FusionModule2000 Smart Modular Data Center

Installation Guide

2 Installation Preparations

Issue 02 (2018-03-31)

Huawei Proprietary and Confidential

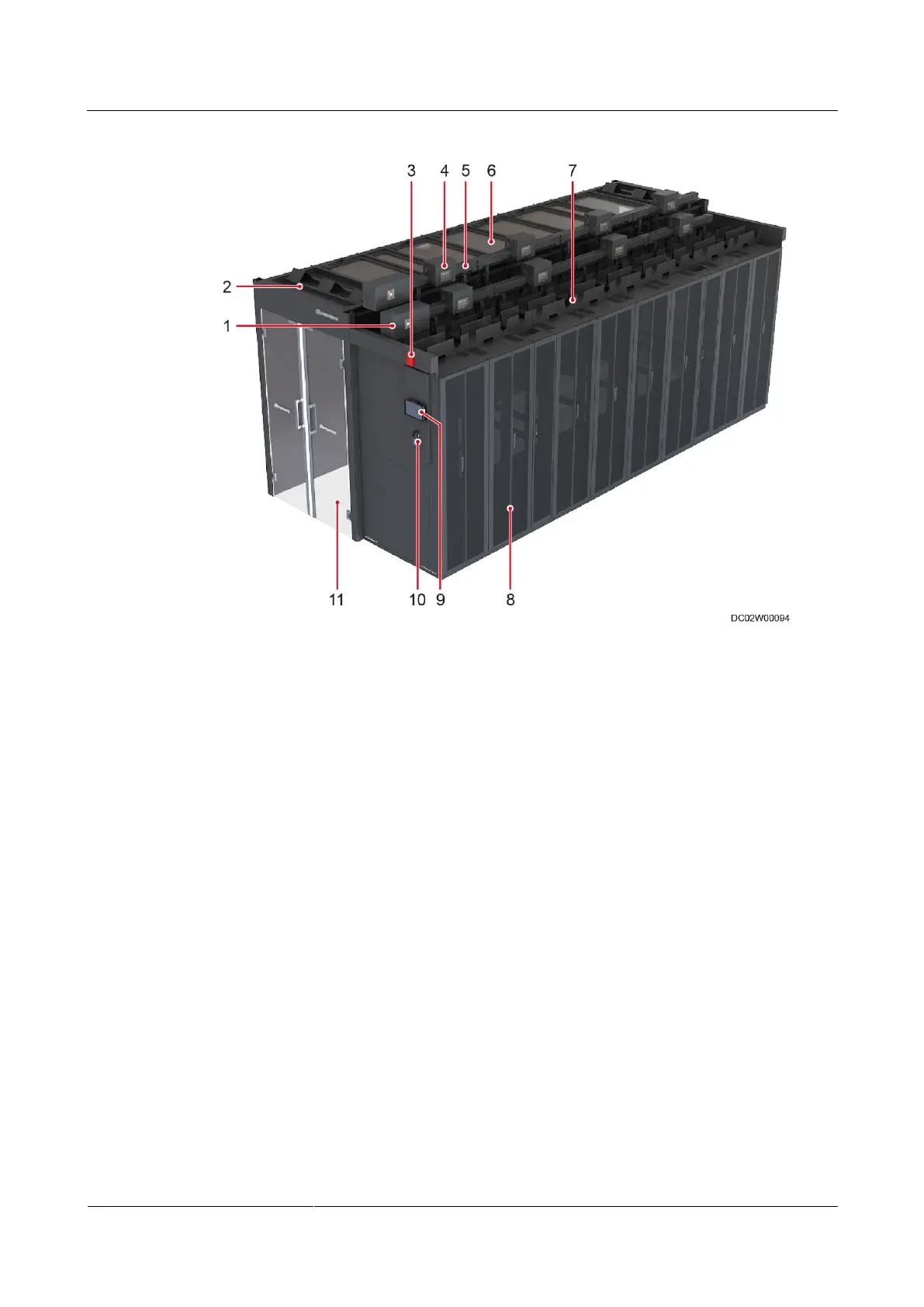

Figure 2-12 Exterior of the single-row aisle containment

(1) General input unit

(2) Control skylight

(3) For the alarm beacon

(4) Power distribution unit

(5) Busbar trunking unit

(6) Flat or rotating skylight

(7) Cable trough

(8) Cabinet

(9) For the pad

(10) For the access control

(11) End door
