FusionModule2000 Smart Modular Data Center
Installation Guide
15 Installing Monitoring Devices
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Procedure
Step 1 Determine the mounting holes for an ECC800 based on the installation position diagram for
monitoring devices in the network cabinet, adjust the guide rails, and install floating nuts.

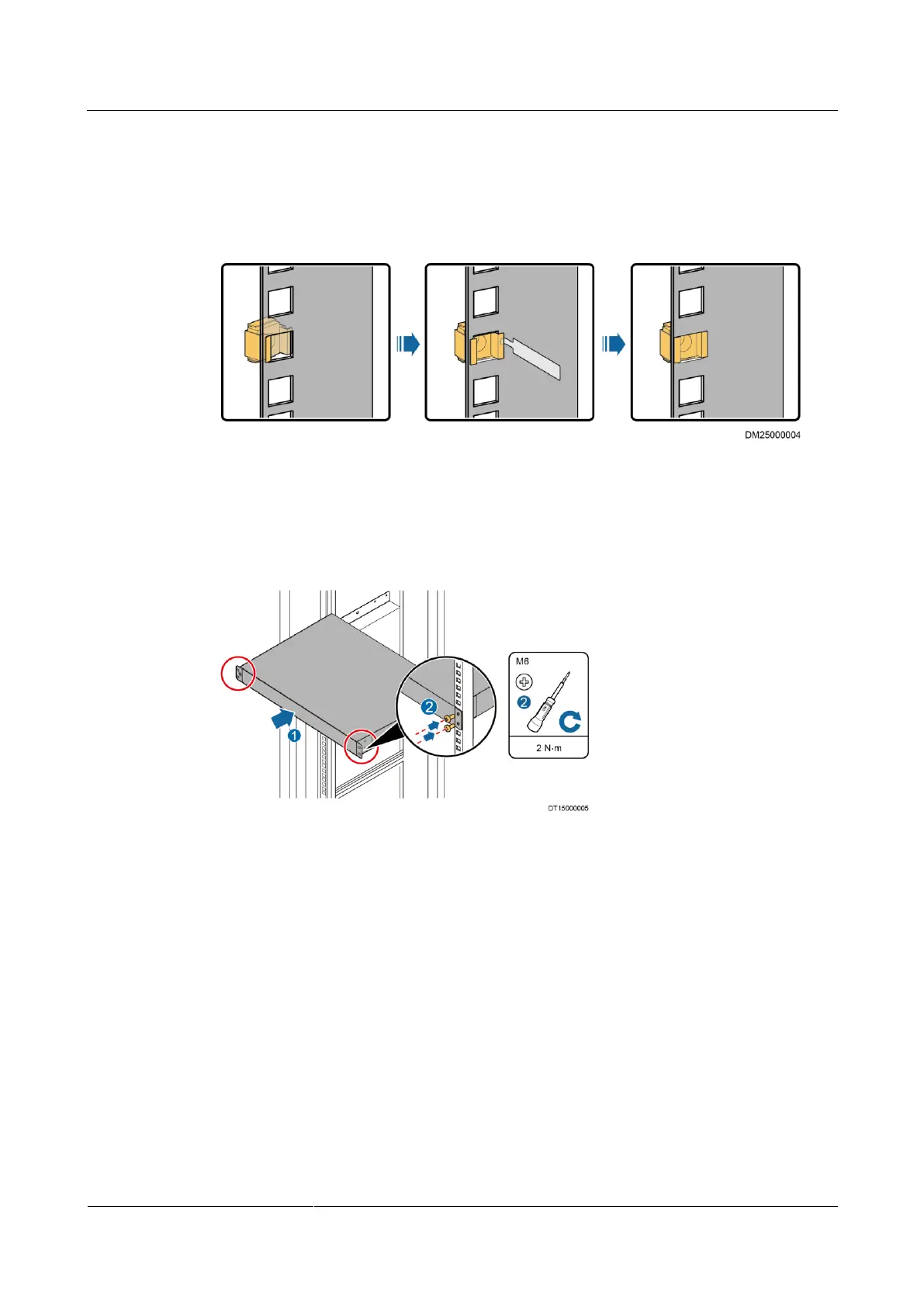

Figure 15-11 Installing floating nuts
Step 2 Place the ECC800 in the network cabinet with caution.
Step 3 Secure the ECC800 in the network cabinet by tightening the M6 screws on the mounting ears.
Figure 15-12 Installing an ECC800
Step 4 (Optional) Remove the ECC800 main control module and install the SIM card in the correct
slot of the main control module as required.
1. Loosen the captive screws on both sides of the ECC800 main control module, pull the
handles on both sides of the main control module, and take out the main control module.
