1.
Slightly loosen the M4x12 screws securing the hanging kits to the conversion brackets (do
not remove the screws), as shown by (1) in Figure 10-29.
2.
Adjust the gaps between adjacent door boxes, as shown by (2) in Figure 10-29. If the gap
is larger at the top and smaller at the bottom, adjust the outer M6 screws downwards to
ensure that the door boxes are in close contact, as shown by A in Figure 10-29. If the gap
is smaller at the top and larger at the bottom, adjust the inner M6 screws downwards to
ensure that the door boxes are in close contact, as shown by B in Figure 10-29.
3.
Tighten the screws to secure the hanging kits to the conversion brackets, as shown by (3)
in Figure 10-29.

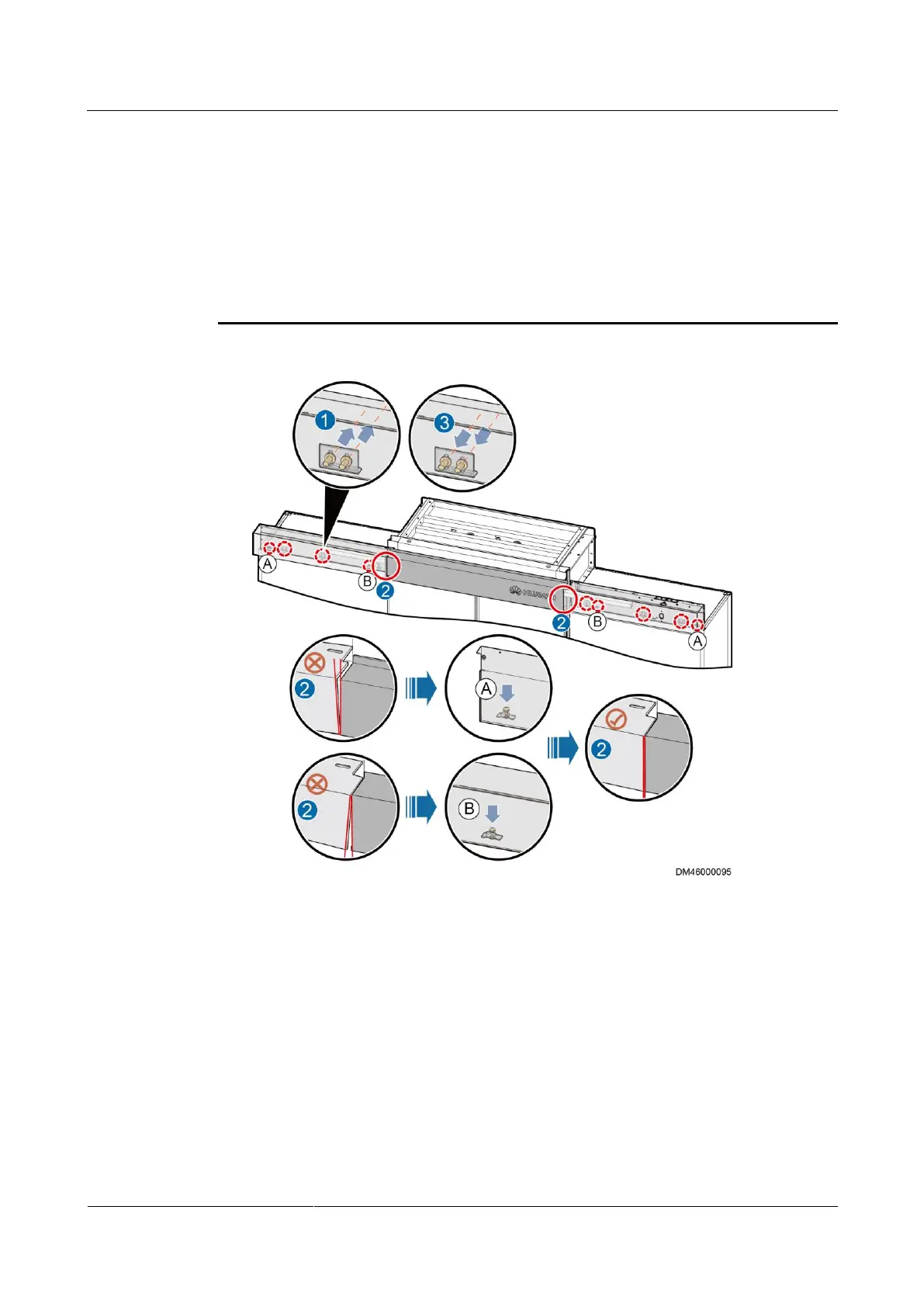

Figure 10-29 Adjusting the gaps between door boxes
----End
Follow-up Procedure
Adjust the inner rubber strip to ensure that the two glass doors are in close contact.
If the two glass doors do not align well because the end cabinets are not properly placed,
insert a spacer between the post and fixing position of the backward cabinet, as shown in
Figure 10-30.
