FusionModule2000 Smart Modular Data Center
Installation Guide
15 Installing Monitoring Devices
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Procedure
Step 1 Align the holes in the mounting base for the multi-functional sensor with the holes in the
control skylight, and use two M3x10 screw assemblies to secure the mounting base to the
control skylight.

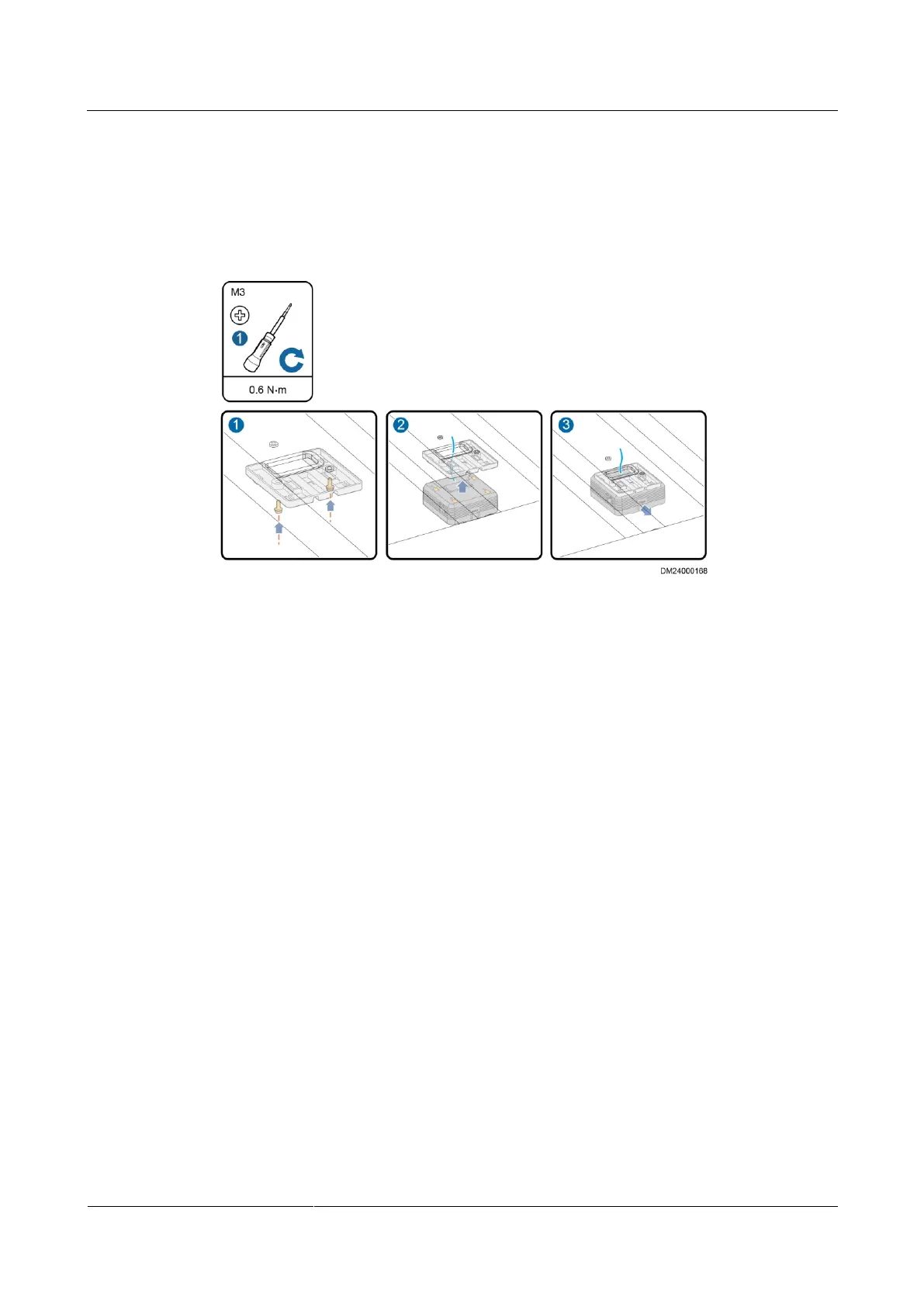

Figure 15-29 Installing a multi-functional sensor
Step 2 Route the cable of the multi-functional sensor through the cable hole in the control skylight.
Step 3 Secure the multi-functional sensor body to the base.
----End
