FusionModule2000 Smart Modular Data Center

Installation Guide

11 Installing Cable Troughs and Cable Trays

Issue 02 (2018-03-31)

Huawei Proprietary and Confidential

163

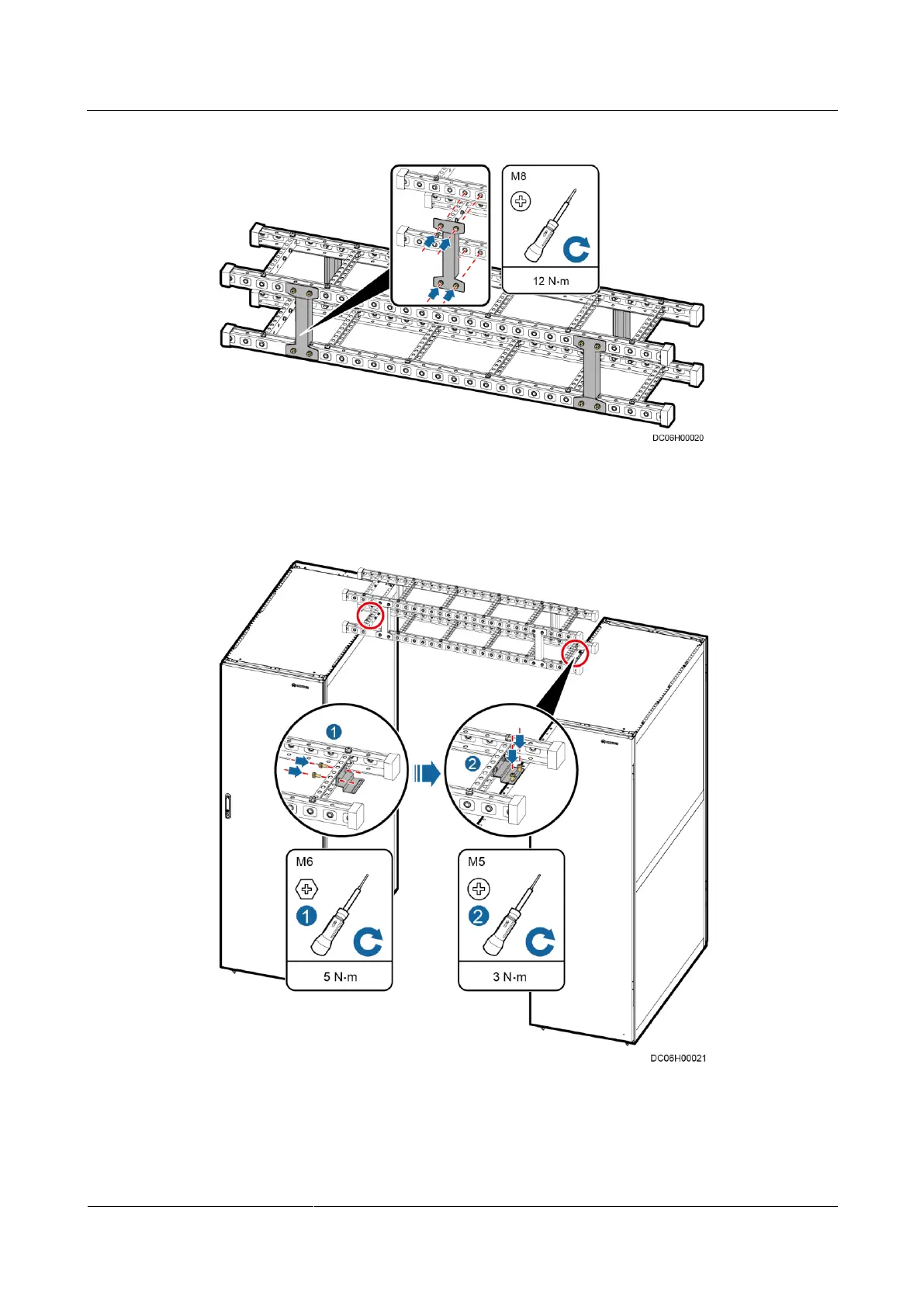

Figure 11-18 Assembling a cable tray

Step 2 Secure cable trays to cabinets.

Figure 11-19 Securing cable trays

----End
